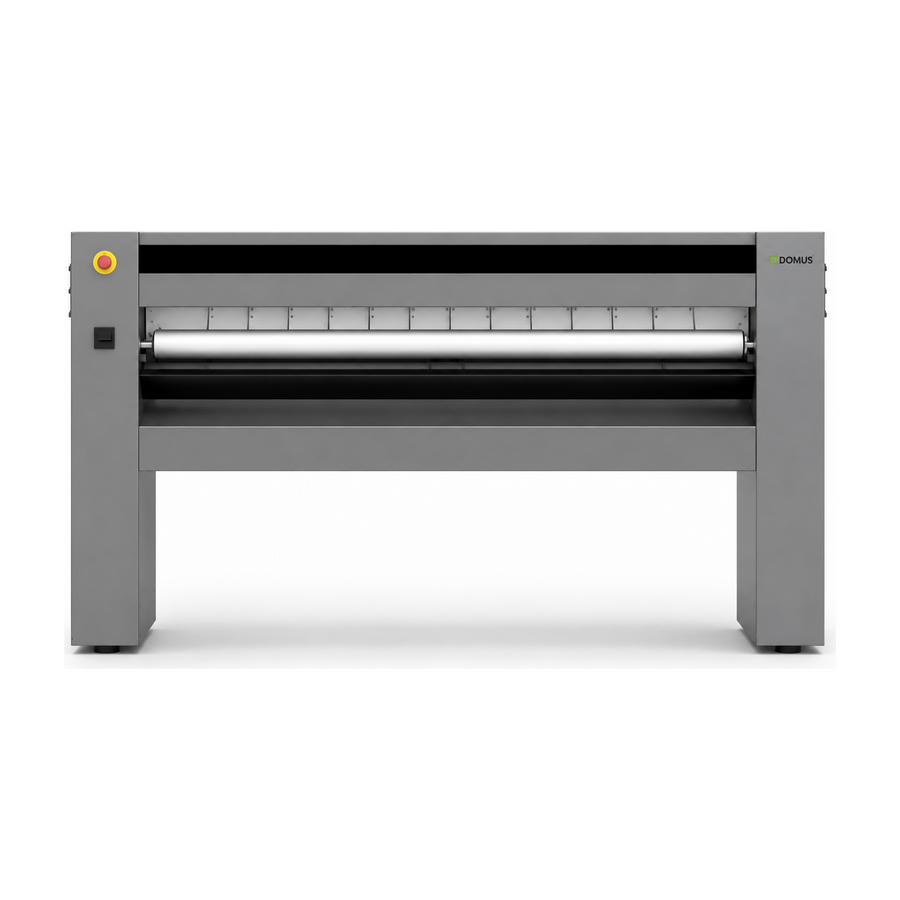

Domus CM-1420 M Flatwork Ironer (Dryer-Ironer)

The Domus CM-1420 M is a front-feed, front-return flatwork dryer-ironer with a 200 mm roller and 1400 mm usable working width. Its exact sheet quotes 12 kg/h theoretical electric output, at 45% incoming moisture. Actual throughput depends on linen, extraction, feeding and finish requirements. The sheet does not establish an integrated length folder.

Control and construction

Electronic control displays speed and temperature, with manual operation and an automatic mode that manages ironing speed against the selected temperature. The table lists two programmes and 1.5–6 m/min working speed. The source lists inverter-driven roller action, Nomex feeding/ironing belts, skinplate and stainless steel panels, front return and a cool-down system. The roller is polished steel. The ECO-ENERGY designation does not itself establish a saving for your site.

Heating and airflow

Electric heating is 10.5 kW and total electrical power is 10.84 kW. The 400V 3N electric reference uses 20 A protection. The exhaust arrangement is one outlet of 83 mm, with 300 m³/h quoted airflow. Confirm the heating version, electrical supply, exhaust route and make-up air.

Access and installation

Net dimensions are 1878 × 666 × 1110 mm (width × depth × height), with 180 kg net weight. The sheet also gives 444 mm depth with the rear fan disassembled; 666 mm is the depth with the fan in place. Use the actual assembled installation arrangement when planning space. Feeding height is 990 mm. Both sides provide maintenance access; allow for safe feeding, linen collection and servicing, rather than only the cabinet footprint. Bring your flatwork widths, peak workload, incoming moisture, access and available services to ILS.

Read the exact CM-1420 M specification · Compare equipment · Discuss this model with ILS
