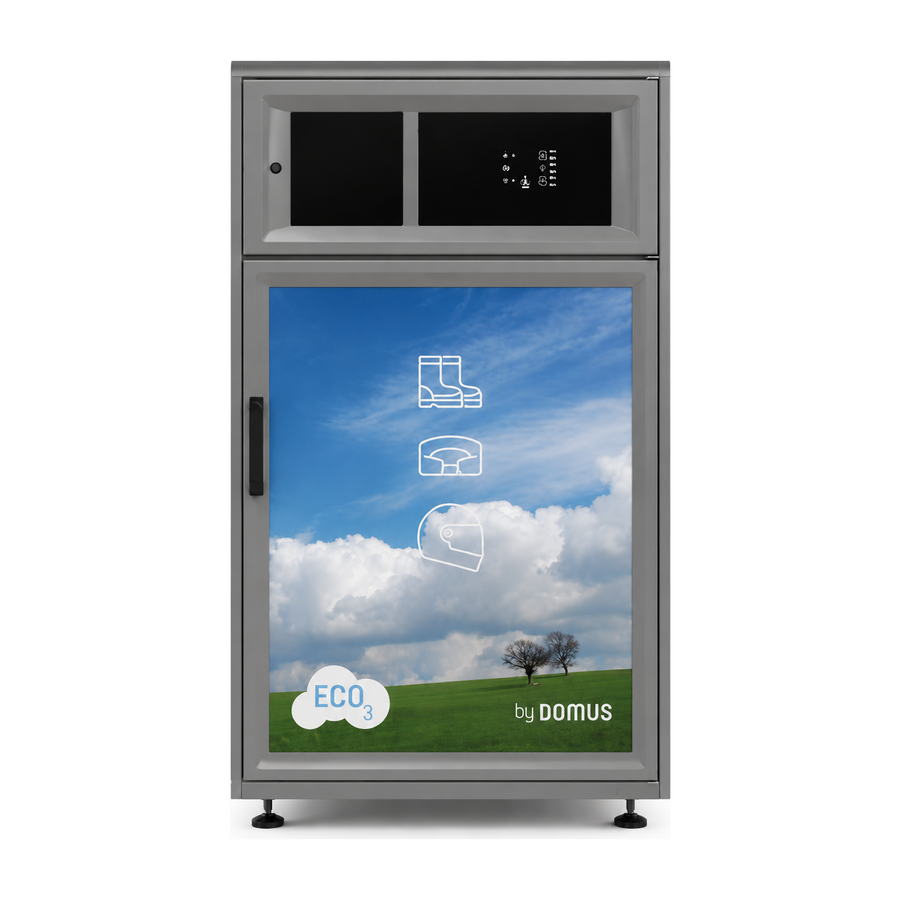

Domus ECO3-300 Ozone Cabinet

The Domus ECO3-300 is an ozone treatment cabinet with 313 litres of cabinet volume. Its exact supplied arrangement has 1 shelf, without a hanging bar. The manufacturer describes treatment of compatible garments and accessories for odour removal. Cabinet volume does not establish a kg load, cycle time or validated clinical disinfection result; confirm the intended items and process before selecting it.

Cabinet and optional hardware

The source lists skinplate panels, OPL and COIN versions, a cycle-status light and a door held by two electromagnets during the cycle. Activated-carbon ozone-destruction filters are accessed from the front for replacement. A wheel kit with two braked and two free wheels is optional, as are alternative self-service payment systems. Specify the supplied feet/wheels, shelving and payment arrangement.

Electrical rating and operating process

The exact table lists 10 g/h ozone generation and 160 W total electrical power at 230V, 50/60Hz. That total includes an 80 W generator, 40 W generation fan and 40 W destruction fan; the fan figure alone is not the cabinet’s total load. The sheet lists no external ventilation connection, but the room, exposure controls and manufacturer’s operating instructions still need assessment. Ozone exposure requires appropriate workplace controls; review HSE’s ozone guidance and the site’s assessment with the responsible person.

Access and suitability

Net dimensions are 680 × 790 × 1112 mm (width × depth × height), with 96 kg net weight. Allow for door travel, front filter maintenance and safe placement. Confirm material compatibility, cycle selection, loading and completion procedures against the supplied instructions. Bring the proposed items, daily demand and site details to ILS to assess a suitable cabinet configuration.

HSE: ozone health hazards and control measures

Read the exact ECO3-300 source · Discuss this equipment with ILS
