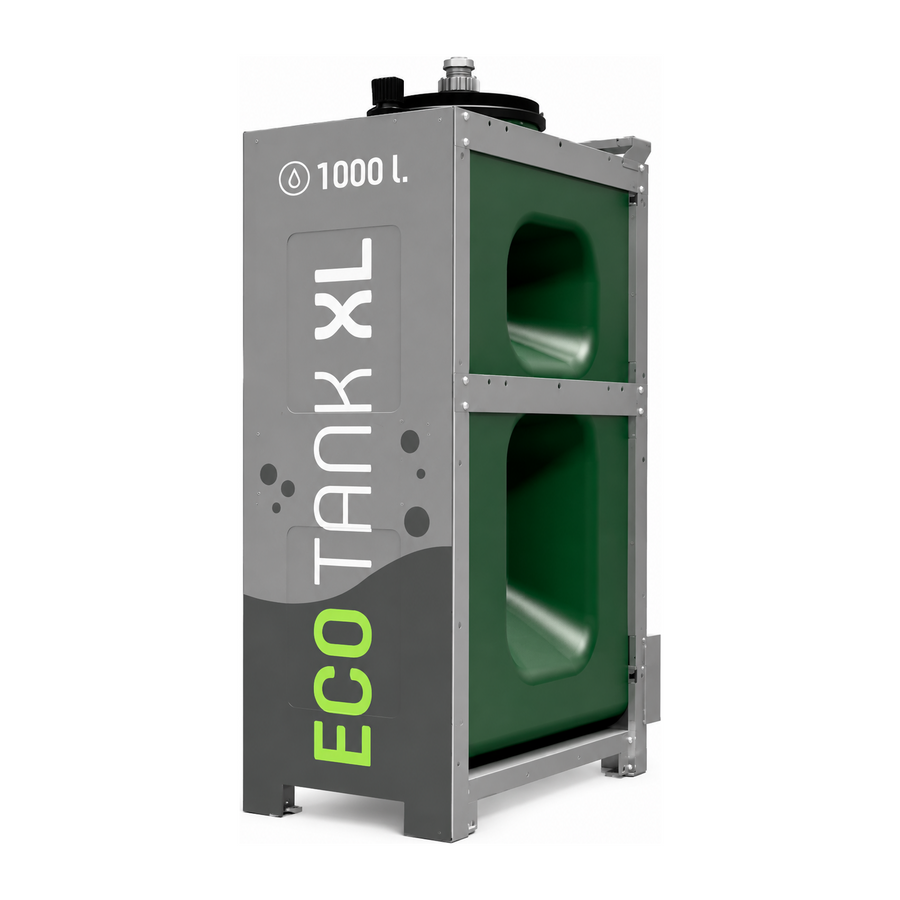

Domus ECOTANK XL Water Recovery Tank

The Domus ECOTANK XL is a centralised water-recovery tank with 1000 litres of storage per unit. One, two or three tanks can form a system serving compatible Domus TOUCH II machines. The source lists 35–120 kg conventional washers and 27–100 kg barrier machines, with exact model connection kits to specify. Recovery storage is not a laundry load rating: plan it around the selected wash process, machines and water routes.

Tank construction and options

The tank is high-density polyethylene with an external galvanised-steel reinforcement frame. Each unit has minimum and maximum water-level sensors, and fixing holes allow floor anchoring. The feature page states no external panels, although the table uses a skinplate-furniture label; confirm the actual supplied finish. An elevated platform and machine-specific hose/accessory kits are options, with connections excluded from the bare tank.

Water and electrical connections

The exact table gives 1in water inlet and outlet, 31 mm breather and overflow/drain references, and a 230V single-phase electrical reference. The drawing calls the table’s steam-exhaust connection a breather; this does not establish steam heating. Agree pipe routes, overflow, drainage, electrical supply and cleaning access using the installation manual. The source describes connections for up to eight 35/45 kg, four 60/80 kg or three 100/120 kg washers; this is a design reference, not universal compatibility.

Load and system design

Net dimensions are 702 × 1375 × 2207 mm (width × depth × height), with 154 kg net weight. A full 1000-litre tank adds a substantial water load, so the structure and lifting plan need the filled installation load. Actual water, chemical and energy savings depend on programmes, garments and recovery practice. Bring the current water use, exact machine list and site layout to ILS to assess a suitable recovery arrangement.

Read the exact ECOTANK XL source · Discuss this equipment with ILS
