Domus Dryer HMI Control Board – 12216279

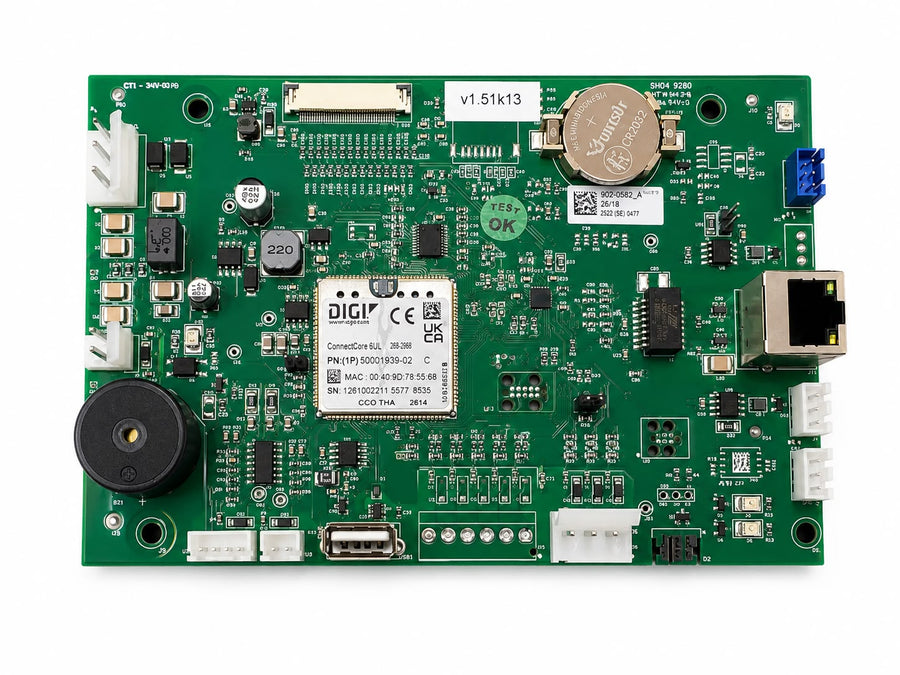

HMI (human-machine interface) control board for Domus and Onnera Group commercial dryers, board reference 902-0582_A. The board runs the machine’s display and user interface and is built around a Digi ConnectCore 6UL processor module, with an Ethernet port for connectivity, a USB connection, display ribbon connector, audible sounder and a replaceable CR2032 backup battery on board. The board offered carries a factory "Test OK" mark and is photographed exactly as supplied.

Product information

• Brand: Onnera
• Manufacturer part number: 12216279
• Related reference: 902-0582_A (printed on the board label)
• Product type: Dryer HMI display control PCB
• Fitted module: Digi ConnectCore 6UL
• Connections: Ethernet, USB, display ribbon, multi-pin control connectors
• Backup battery: CR2032 (fitted)
• Condition: New old stock, factory test-marked
• Quantity included: One bare control PCB

Compatibility

Replacement HMI board for Domus and Onnera Group commercial dryers specified for board reference 12216279 / 902-0582_A. High-value electronic part — please confirm the reference against your existing board before ordering.

Compatibility may vary by machine model, serial number, production date and revision. Please compare the part number, connections, dimensions and product photographs with the existing component before ordering.

What's included

One bare HMI control PCB with backup battery fitted, as photographed. No display panel, cables, enclosure or mounting hardware are included.

Condition

New old stock. The item may show minor packaging or storage marks. Please review the supplied photographs, which show the actual product offered.

Installation

Commercial laundry components should be installed by a competent engineer. Confirm electrical ratings, dimensions, connections and compatibility before installation.
