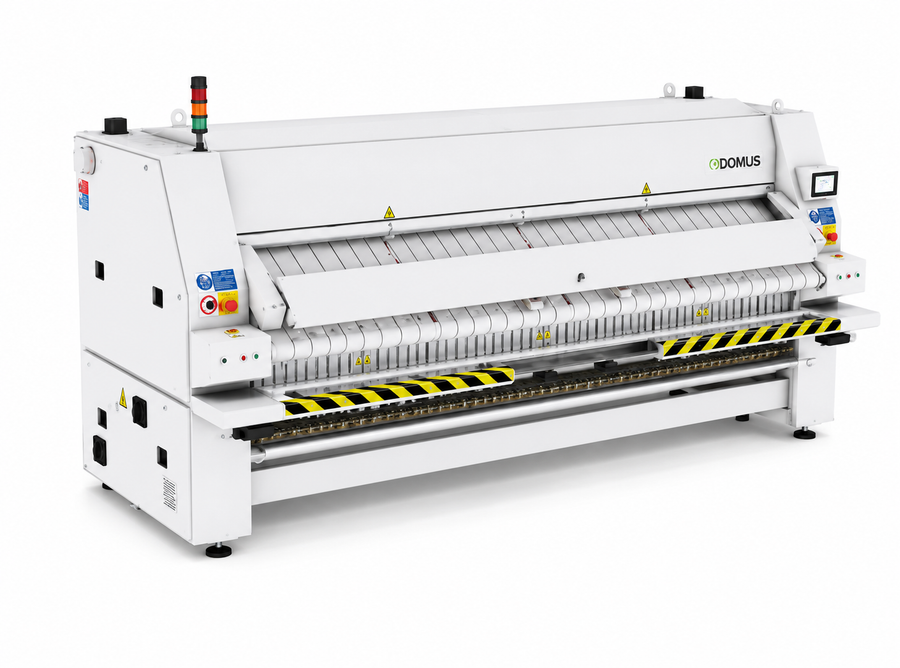

Domus SP1000-3300 Drying Ironer With Lengthfolder

The Domus SP1000-3300 has 3300 mm working width and a 1000 mm roller. It dries, irons and folds lengthwise. The table allows one or two lengthfolds in one or two lanes; crossfolding and lateral stacking are not built into this base SP machine. An external CPL-CROSS folder/stacker is optional. The electric/steam reference output is 250–290 kg/h; radiant-gas references are 300–348 kg/h. These theoretical figures use 50% residual moisture, 140 g/m² cotton and full roller utilisation. The exact heating, fold arrangement, textiles and feeding determine the installed result.

Control, lanes and options

The source describes a programmable 7-inch touchscreen; the exact table lists 20 programmes, 4–18 m/min speed and 1050 mm feeding height. Automatic ironing-speed control, automatic roller cooling and fume extraction with automatic fan cleaning are described, with 165°C maximum temperature. Vacuum feeding belts and the one-lane clamp feeder are optional, and the feeder requires the vacuum-belt option. Rear-output tables, bypass, small-piece collectors, double air pressure and linen rejection are optional; collectors require the specified rear-exit/bypass arrangement. The photos are genuine range references; confirm the supplied controls and accessories.

Heating and electrical version

Electric heating is 90 kW with 92.6 kW quoted total electrical power. Gas versions list LPG 159.1 kW or natural-gas 155.7 kW heating, with 2.6 kW electrical power. Steam heating is 150 kW with 260 kg/h reference consumption (12 bar maximum) and 2.6 kW electrical power. Atmospheric gas is not established for the 1000 mm range. The default source voltage is 400V 3N 50Hz, with alternatives optional. The source’s consumption-current row is not a circuit-protection specification.

Air, access and installation

The connection table gives 1in gas, 1-1/4in steam, 1in condensate and a 12 mm compressed-air inlet. Air use is 9,500 Nl/h at 6.5 bar; two 160 mm exhausts have 2 × 1400 m³/h reference extraction. Net cabinet dimensions are 4486 × 1985 × 2180 mm (width × depth × height), with 3950 kg quoted net weight. Optional tables, feeders and stackers change the footprint and service needs. Confirm lifting weight, packaged dimensions, access, maintenance clearances and the final layout against the supplied installation drawing. Bring the largest flatwork, peak workload and desired fold/stack to ILS. The technical drawings include range and accessory layouts whose overall dimensions differ from the model’s net-dimension table; use the approved order-specific drawing for layout design.
