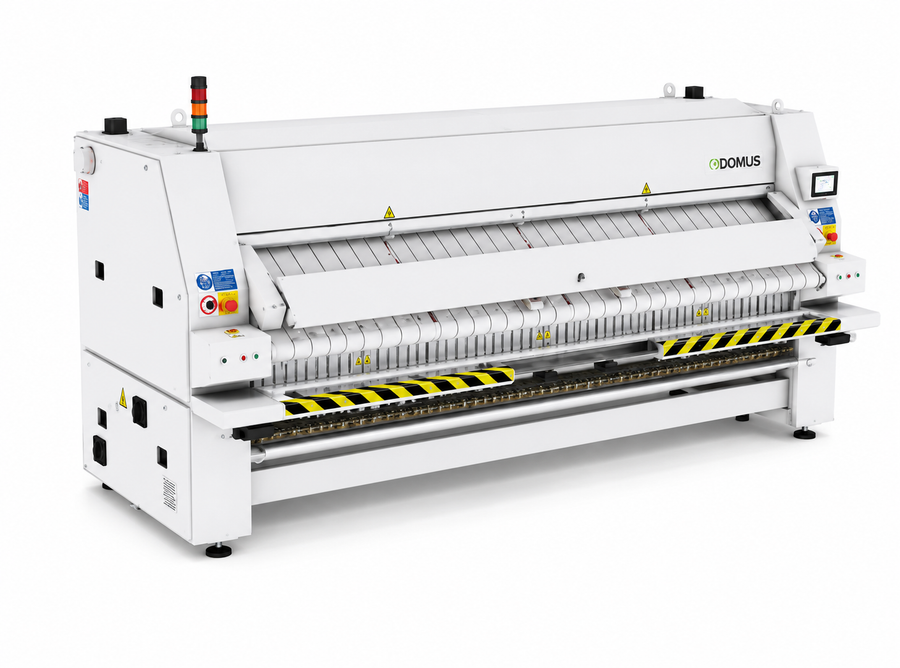

Domus SP800-2600 Drying Ironer With Lengthfolder

The Domus SP800-2600 has 2600 mm working width and a 800 mm roller. It dries, irons and folds lengthwise. The table allows one or two lengthfolds in one or two lanes; crossfolding and lateral stacking are not built into this base SP machine. An external CPL-CROSS folder/stacker is optional. The electric/steam reference output is 140–175 kg/h; radiant-gas references are 168–210 kg/h. These theoretical figures use 50% residual moisture, 140 g/m² cotton and full roller utilisation. The exact heating, fold arrangement, textiles and feeding determine the installed result.

Control, lanes and options

The source describes a programmable 7-inch touchscreen; the exact table lists 20 programmes, 3–14 m/min speed and 1050 mm feeding height. Automatic ironing-speed control, automatic roller cooling and fume extraction with automatic fan cleaning are described, with 165°C maximum temperature. Vacuum feeding belts and the one-lane clamp feeder are optional, and the feeder requires the vacuum-belt option. Rear-output tables, bypass, small-piece collectors, double air pressure and linen rejection are optional; collectors require the specified rear-exit/bypass arrangement. The photos are genuine range references; confirm the supplied controls and accessories.

Heating and electrical version

Electric heating is 72 kW with 74.2 kW quoted total electrical power. Gas versions list LPG 91.7 kW or natural-gas 86.95 kW heating, with 2.2 kW electrical power. Steam heating is 85 kW with 150 kg/h reference consumption (12 bar maximum) and 2.2 kW electrical power. The default source voltage is 400V 3N 50Hz, with alternatives optional. The source’s consumption-current row is not a circuit-protection specification.

Air, access and installation

The connection table gives 1in gas, 1in steam, 1/2in condensate and a 12 mm compressed-air inlet. Air use is 9,000 Nl/h at 6.5 bar; two 160 mm exhausts have 2 × 1400 m³/h reference extraction. Net cabinet dimensions are 3790 × 1770 × 2200 mm (width × depth × height), with 2535 kg quoted net weight. Optional tables, feeders and stackers change the footprint and service needs. Confirm lifting weight, packaged dimensions, access, maintenance clearances and the final layout against the supplied installation drawing. Bring the largest flatwork, peak workload and desired fold/stack to ILS. The technical drawings include range and accessory layouts whose overall dimensions differ from the model’s net-dimension table; use the approved order-specific drawing for layout design.

Read the exact SP800-2600 specification · Compare equipment · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
