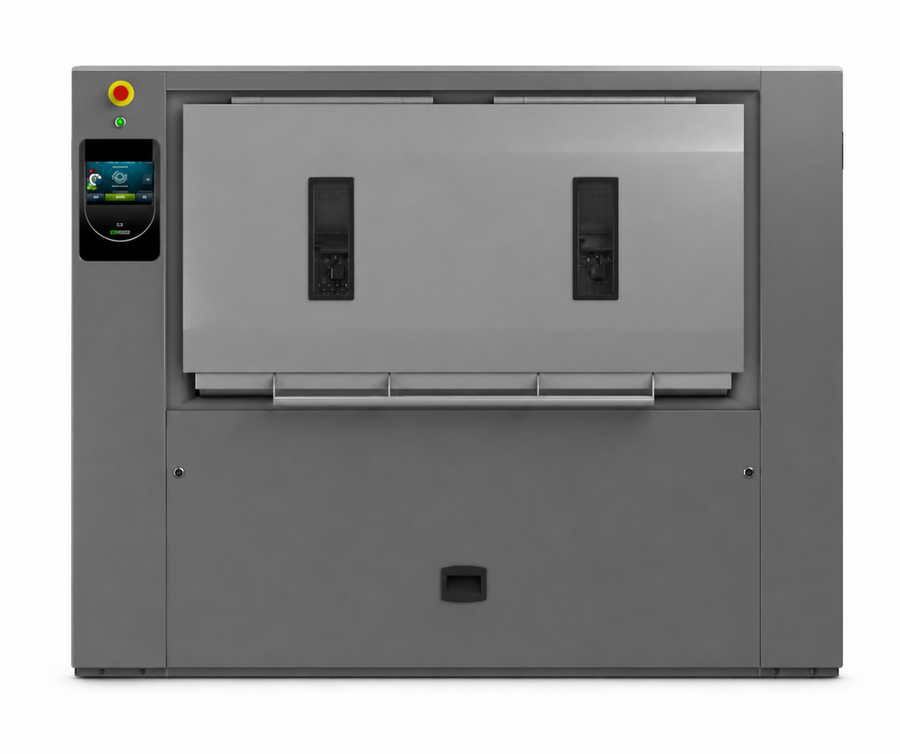

Domus DHB-70 77.7kg Barrier Washer

The Domus DHB-70 TOUCH II is a pass-through barrier washer with a 694-litre drum. Rated dry-load capacities are 77.7 kg at a 1:9 fill ratio and 70 kg at 1:10. The source lists a two-compartment drum and opposed loading and unloading doors. This is distinct from the single-compartment standard specification of the DHB-35 and DHB-50.

What this specification establishes

Double screens and the motor brake are standard, while double drainage and automatic drum positioning are optional. The drawing lists two drum openings within the large vat opening; handling and separation need to be planned for the complete process. The specified G-factor is 375.

Options and installation

The drum and vat are AISI 304 stainless steel; the grey skinplate cabinet has a stainless steel top. The soapbox arrangement changes the width. Confirm the exact configuration, utilities and service access with ILS. The electric version totals 52.5 kW electrical power; the steam version uses 7.5 kW electrical power in addition to its heat source.

Prepare a useful enquiry

Bring the textile mix, operating window and soiled/clean handling routes to the enquiry. The machine specification must form part of the facility’s own process plan; equipment alone does not establish validated hygiene or cleanroom compliance.

Review the manufacturer specification · Build your equipment project · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
