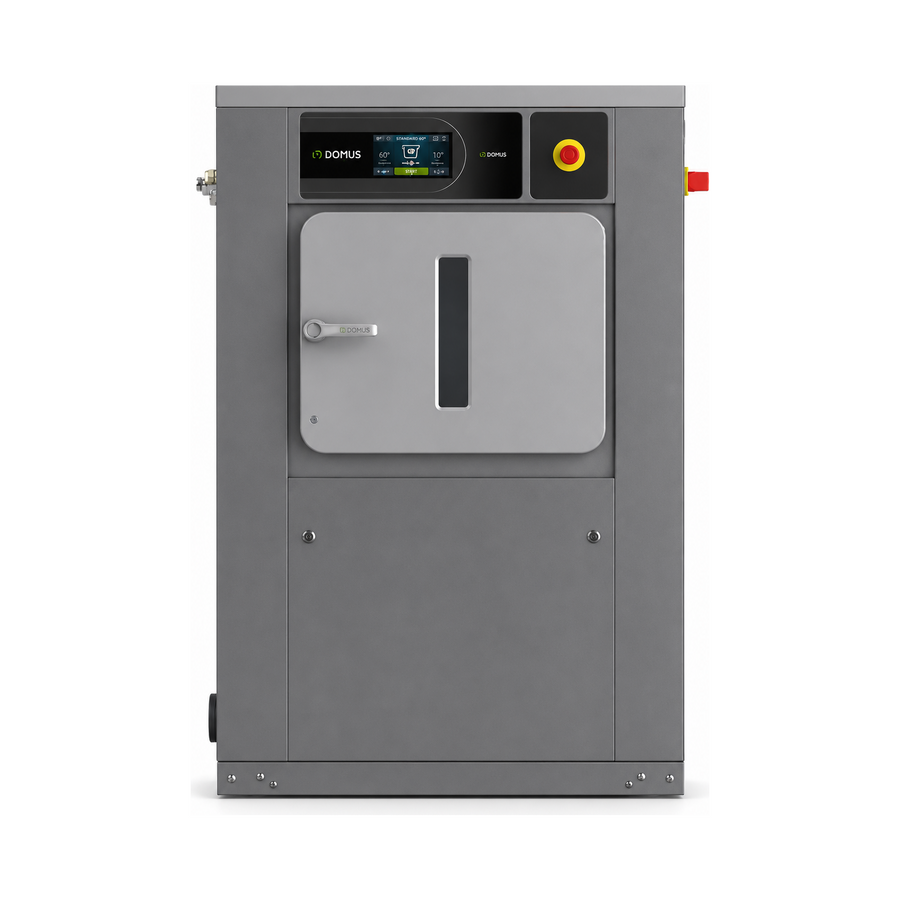

Domus ASM-16 18kg Barrier Washer Open the full-size image in a new tab

Manufacturer photograph. The supplied configuration is confirmed in your quotation.

Domus · ASM barrier washer

Domus ASM-16 18kg Barrier Washer

The Domus ASM-16 TOUCH II is a pass-through barrier washer with opposed loading and unloading doors.

Rated capacity
18 kg at 1:9 / 16 kg at 1:10
Control
TOUCH II 7-inch touchscreen; second clean-side screen optional
W × D × H
1056 x 1082 x 1382 mm
Weight
438 kg
Quoted for your sitePrice on application

Your quotation confirms the specification, delivery and any installation for your site.

Ask a specialist about this machine
Datasheet PDF ↗

  • Delivery is quoted for your site, with installation available as an option.
  • Utilities, access and options are confirmed with you before ordering.
  • Questions? Call 07411 229429, Mon–Fri, 9am–5pm.

Overview

The Domus ASM-16 TOUCH II is a pass-through barrier washer with opposed loading and unloading doors. Its 158-litre drum is rated at 18 kg at a 1:9 fill ratio or 16 kg at 1:10. The machine can form part of a separated laundry workflow; the room layout and operating process need their own planning.

What this specification establishes

The manufacturer specifies a 7-inch TOUCH II screen, a G-factor of 350 and AISI 304 stainless steel drum and vat. Eight dosing signals are standard, with six additional signals optional. The cabinet is skinplate with a stainless steel top.

Options and installation

The second 7-inch screen on the clean side is optional, as are automatic drum positioning, weighing and a second drain. The electrical version totals 14.2 kW; the steam version uses 2.2 kW electrical power. Confirm each selected option and the exact installation drawing in the quotation.

Prepare a useful enquiry

Discuss soiled and clean routes, staff access, drainage and the required control configuration. Barrier equipment alone does not establish a validated hygiene or cleanroom process.

Review the manufacturer specification · Build your equipment project · Discuss this model with ILS

Specification

Manufacturer datasheet (PDF)

Model & workload

Model details for Domus ASM-16 18kg Barrier Washer
BrandDomus
RangeBarrier washers ASM
Equipment typewasher
Rated capacity18 kg at 1:9 / 16 kg at 1:10
Conditionnew
Weight438.0 kg

Controls & configuration

Controls for Domus ASM-16 18kg Barrier Washer
ControlTOUCH II 7-inch touchscreen; second clean-side screen optional
Payment compatibilityNo self-service payment configuration established in the linked ASM-16 datasheet

Site & services

Site requirements for Domus ASM-16 18kg Barrier Washer
Electrical supply230V 1+N+T (steam model) | 230V 3+T | 400V 3+N+T
PowerElectric version: 14.2 kW total electrical; steam version: 2.2 kW electrical
Water connection3/4in water inlet (2 inlets; 3rd optional)
Drain1x 3in drain / 200 l/min (2nd drain valve optional)
Dimensions (W × D × H)1056 x 1082 x 1382 mm

Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.

Documents

Manufacturer files. They open in a new tab.

Delivery & installation

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.
