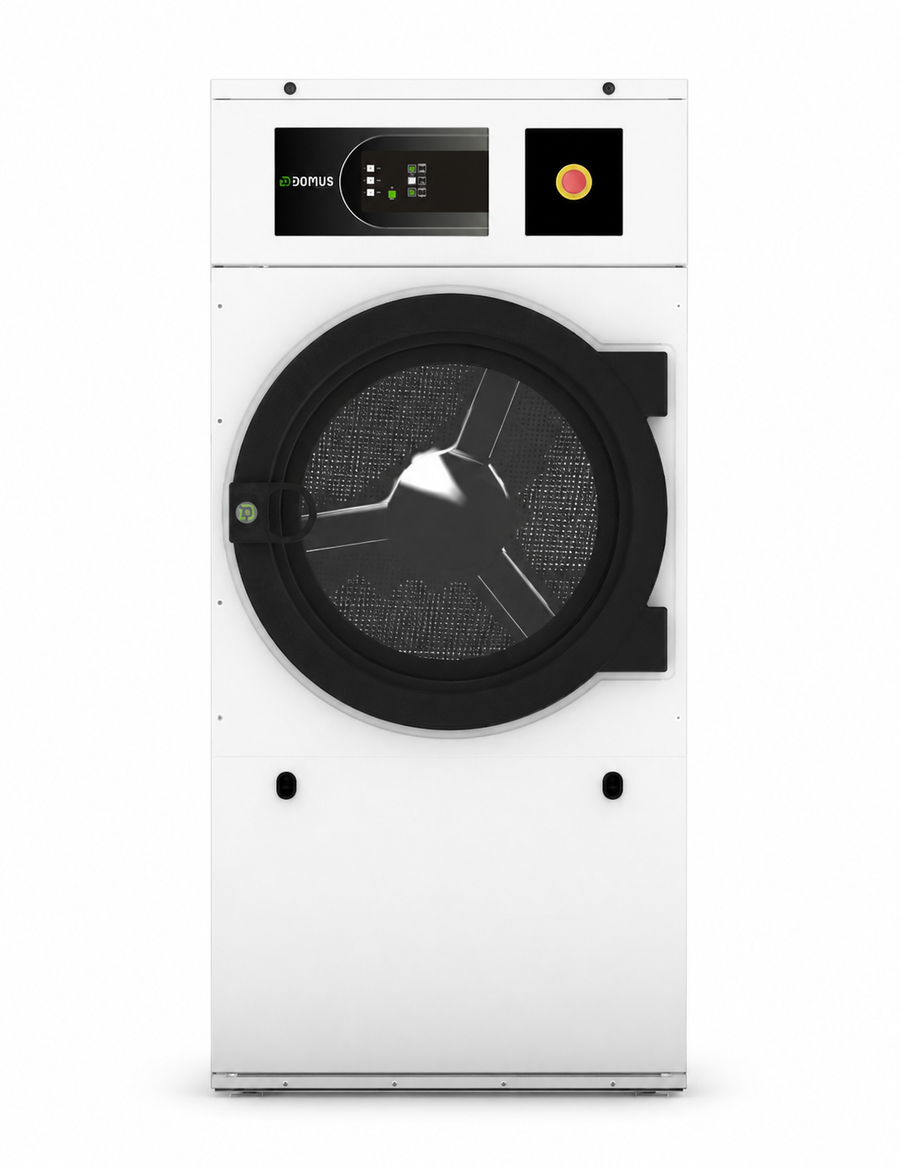

Domus DLM-18 18.3kg Commercial Dryer

The Domus DLM-18 is an ESSENTIAL single-drum commercial dryer with M electronic push-button control. Its 330-litre drum is rated at 18.3 kg for a 1:18 fill ratio or 16.5 kg for 1:20. The 330-litre drum is 746 mm long and the cabinet is 1125 mm deep. The reduced-heating option text names DTM-14/18, rather than establishing a reduced DLM-18 configuration; confirm any alternative. Dry-load ratings and published test outputs need to be considered alongside textile mix, incoming moisture and available working time.

ESSENTIAL construction and M control

The exact ESSENTIAL specification states a galvanised steel drum and white painted panels. Reversing drum action and a frequency inverter are standard. M push buttons control temperature and time, with cool-down at the end of the cycle. The M-programmer display, opposite door opening, rear air-filter panel and external service console are options to confirm in the order. Avoid assuming the stainless steel drum or touchscreen of another Domus range.

Heating and site services

The electric version lists 18 kW heating and 18.67 kW installed electrical power. Gas heating is 20.5 kW with 0.67 kW electrical power and a 1/2in gas inlet. The cited 400V 3N electric circuit uses 32 A protection. Nominal airflow is 850 m³/h through a 200 mm exhaust. This exact source describes electric or gas heating; it does not establish a steam version. Check the actual heating, electrical supply, extraction and make-up air for the site.

Access and application

Net dimensions are 785 × 1125 × 1694 mm (width × depth × height), with 187 kg net weight and a 574 mm loading opening. Confirm door clearance, lint-filter access, servicing space and delivery route from the final model drawing. The source describes OPL-to-coin-laundry conversion, but payment hardware must be agreed for the supplied version. Bring the peak drying requirement and the rest of the wash-to-finish process to ILS before settling equipment and scope.

Read the exact DLM-18 specification · Compare dryers · Discuss this model with ILS
