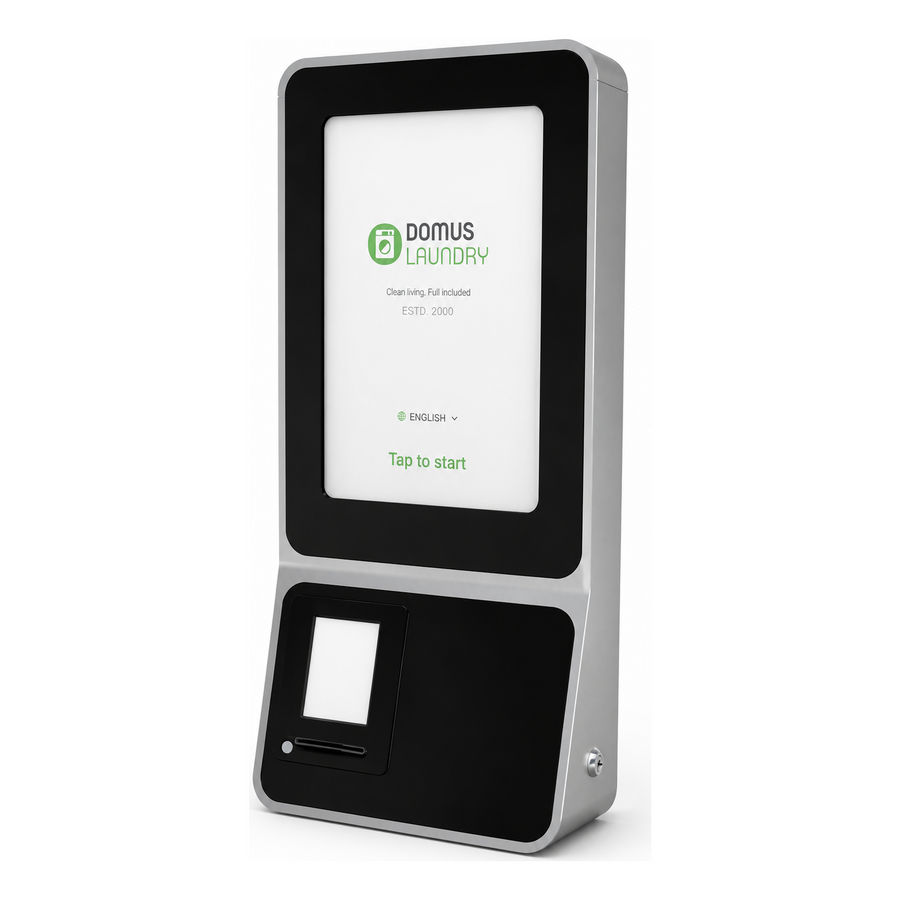

Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Domus · Laundry kiosk (payment centre)
Domus Laundry Kiosk 12 – Payment Centre
The Domus Laundry Kiosk 12 is a wall-mounted central payment terminal with a 12-inch touchscreen and contactless reader.
- Manufacturer rating
- 12-inch screen; pulse option max 8 devices; Ethernet equipment to confirm
- Control
- 12-inch touchscreen / contactless reader / DOMUSCONNECT and App integration
- W × D × H
- 254 x 134.3 x 536.1 mm
- Weight
- 5 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Domus Laundry Kiosk 12 is a wall-mounted central payment terminal with a 12-inch touchscreen and contactless reader. It supports card, mobile and compatible NFC-device payments through the configured payment service. Customers choose language, service, machine and programme, make payment and start the chosen machine. Confirm the available languages, payment setup and supported equipment for the actual laundry.
Connectivity and ticket options
The exact source lists Ethernet connectivity, DOMUSCONNECT and DOMUS LAUNDRY App integration, digital tickets and customisable sticker graphics. This 12-inch version has no integrated paper-ticket printer. Confirm account setup, connectivity, payment-provider requirements and any ongoing service terms before ordering; the equipment sheet does not define those terms.
Machine and network integration
An external pulse-signal card is optional. The exact source limits pulse communication to eight devices per kiosk; Ethernet communication is described without that device limit. This does not guarantee compatibility with every third-party machine. Agree the exact pulse/network hardware, machine interfaces, cable routes, internet access and electrical connection with the installer. The sheet shows electrical connections but does not give a supply-voltage or power rating, so those need the installation manual.
Mounting and maintenance
Net dimensions are 254 × 134.3 × 536.1 mm (width × depth × height), with 5 kg net weight. The recommended lower-edge mounting height is 1020 mm from ground level. Leave 250 mm on the left for the kiosk door and component maintenance; rear-room access is also described. Bring the machine list, site layout and preferred payment method to ILS to plan the kiosk and service arrangement.
Read the exact DOMUS LAUNDRY KIOSK 12 source · Discuss this equipment with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Domus |
|---|---|
| Range | Coin Laundry |
| Equipment type | laundry kiosk (payment centre) |
| Rated capacity | 12-inch screen; pulse option max 8 devices; Ethernet equipment to confirm |
| Condition | new |
| Weight | 5.0 kg |
Controls & configuration
| Control | 12-inch touchscreen / contactless reader / DOMUSCONNECT and App integration |
|---|---|
| Programmes | Language, service, machine and programme selection; digital ticket |
| Payment compatibility | Card / mobile / NFC via configured service; pulse card optional |
Site & services
| Electrical supply | Confirm exact supply from installation manual; not rated in this sheet |
|---|---|
| Dimensions (W × D × H) | 254 x 134.3 x 536.1 mm |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
