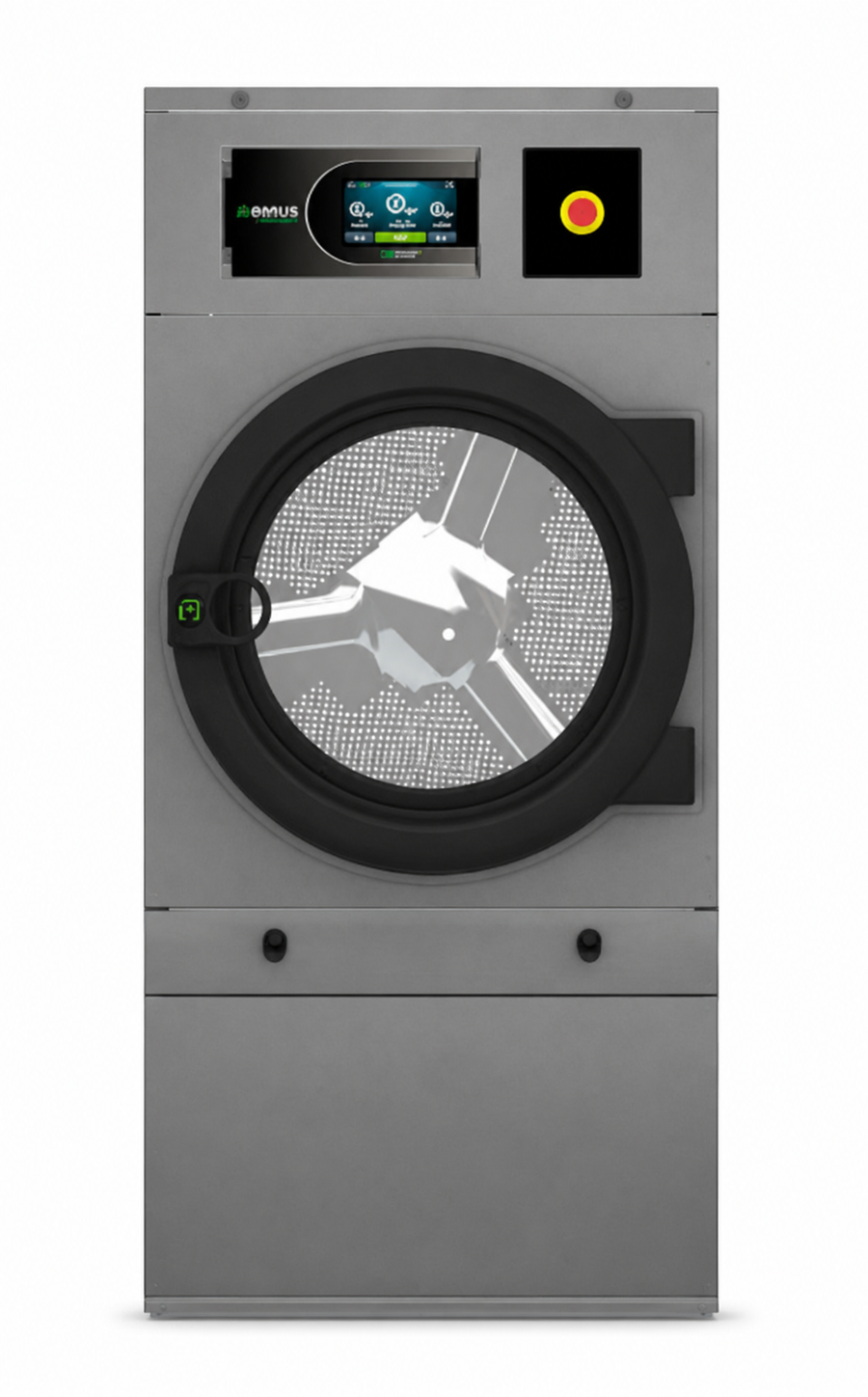

Domus DTT-11 ECO-ENERGY 11.7kg Commercial Dryer

The Domus DTT-11 ECO-ENERGY is a single-drum commercial dryer rated at 11.7 kg for 1:18 or 10.5 kg for 1:20, with a 210-litre drum. The 210-litre drum is 475 mm long. Its 1200 m³/h nominal airflow and 12.97 kW electric connected load differ from the standard DTT-11 sheet. A 230V single-phase electric configuration is listed as an option, with different protection requirements. Choose capacity against the dry textile workload and working window; a fill-ratio rating is not a guaranteed daily throughput.

ECO-ENERGY configuration

The exact ECO-ENERGY sheet lists EFFICIENT DRY intelligent humidity control with drum-inlet temperature control, AIR RE-CYCLE recirculation, insulation through the airflow circuit, double door glass and FULL FLOW mixed airflow. It also lists SFEX integrated fire extinguishing. These are the documented configuration features; energy use and cycle results depend on the actual textiles, residual moisture, settings and installation.

Controls and heating

Touch II has a programmable 7-inch touchscreen, USB and 37 languages. Reversing action, stainless steel drum and frequency inverter are listed as standard. Confirm connectivity licence and optional casing, filter, door and payment arrangements in the quotation. The electric version lists 12 kW heating and 12.97 kW installed electrical power. Gas heating is 20.5 kW with 0.97 kW electrical power; standard steam heating is 30 kW. The cited 400V 3N electric configuration uses 25 A protection.

Plan the installation

Nominal airflow is 1200 m³/h through a 200 mm exhaust. The gas table specifies a 1/2in inlet. Net dimensions are 785 × 855 × 1694 mm (width × depth × height), with 172 kg net weight and a 574 mm loading opening. Check make-up air, exhaust, door clearance, lint-filter withdrawal and service access with the site and selected heating version.

Read the exact DTT-11 ECO-ENERGY specification · Compare dryers · Discuss the drying requirement with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
