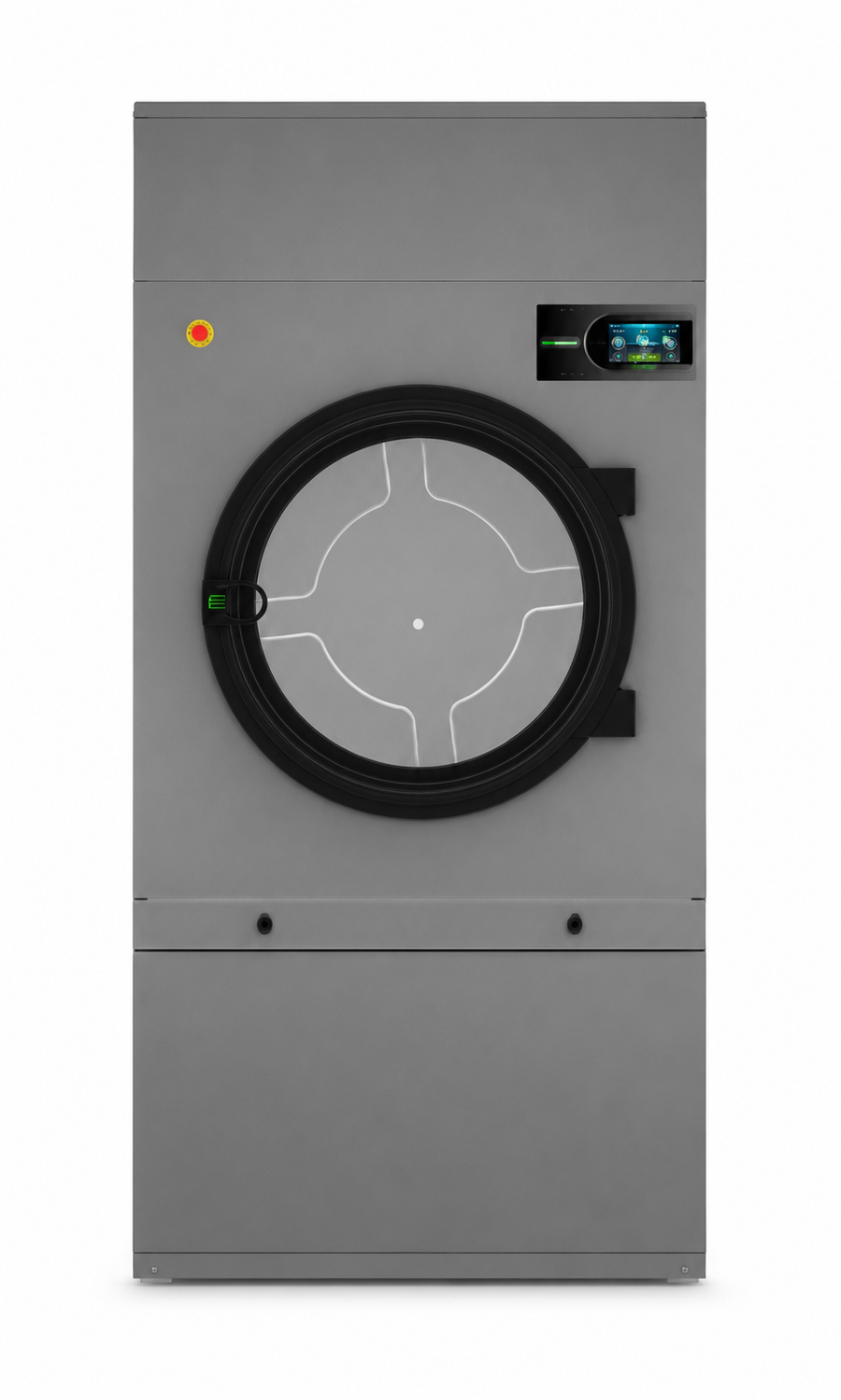

Domus DTT-45 ECO-ENERGY 50kg Commercial Dryer

The Domus DTT-45 ECO-ENERGY is a single-drum commercial dryer rated at 50 kg for 1:18 or 45 kg for 1:20, with a 900-litre drum. This 900-litre model has a 760 mm-long drum and geared drive. Its 4500 m³/h nominal airflow and 57 kW electric connected load are distinct from the standard DTT-45. Tilting and automatic/manual sliding-door configurations are options. Choose capacity against the dry textile workload and working window; a fill-ratio rating is not a guaranteed daily throughput.

ECO-ENERGY configuration

The exact ECO-ENERGY sheet lists EFFICIENT DRY intelligent humidity control with drum-inlet temperature control, AIR RE-CYCLE recirculation, insulation through the airflow circuit, double door glass and FULL FLOW mixed airflow. It also lists SFEX integrated fire extinguishing. These are the documented configuration features; energy use and cycle results depend on the actual textiles, residual moisture, settings and installation.

Controls and heating

Touch II has a programmable 7-inch touchscreen, USB and 37 languages. Reversing action, stainless steel drum and frequency inverter are listed as standard. Confirm connectivity licence and optional casing, filter, door and payment arrangements in the quotation. The electric version lists 54 kW heating and 57 kW installed electrical power. Gas heating is 60 kW with 3 kW electrical power; standard steam heating is 91 kW. The cited 400V 3N electric configuration uses 100 A protection.

Plan the installation

Nominal airflow is 4500 m³/h through a 300 mm exhaust. The gas table specifies a 3/4in inlet while the drawing legend gives 1/2in; confirm this connection against the final supplied drawing. Net dimensions are 1270 × 1106 × 2380 mm (width × depth × height), with 395 kg net weight and a 802 mm loading opening. Packing height is marked without heating equipment and must not substitute for installed height. Check make-up air, exhaust, door clearance, lint-filter withdrawal and service access with the site and selected heating version.

Read the exact DTT-45 ECO-ENERGY specification · Compare dryers · Discuss the drying requirement with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
