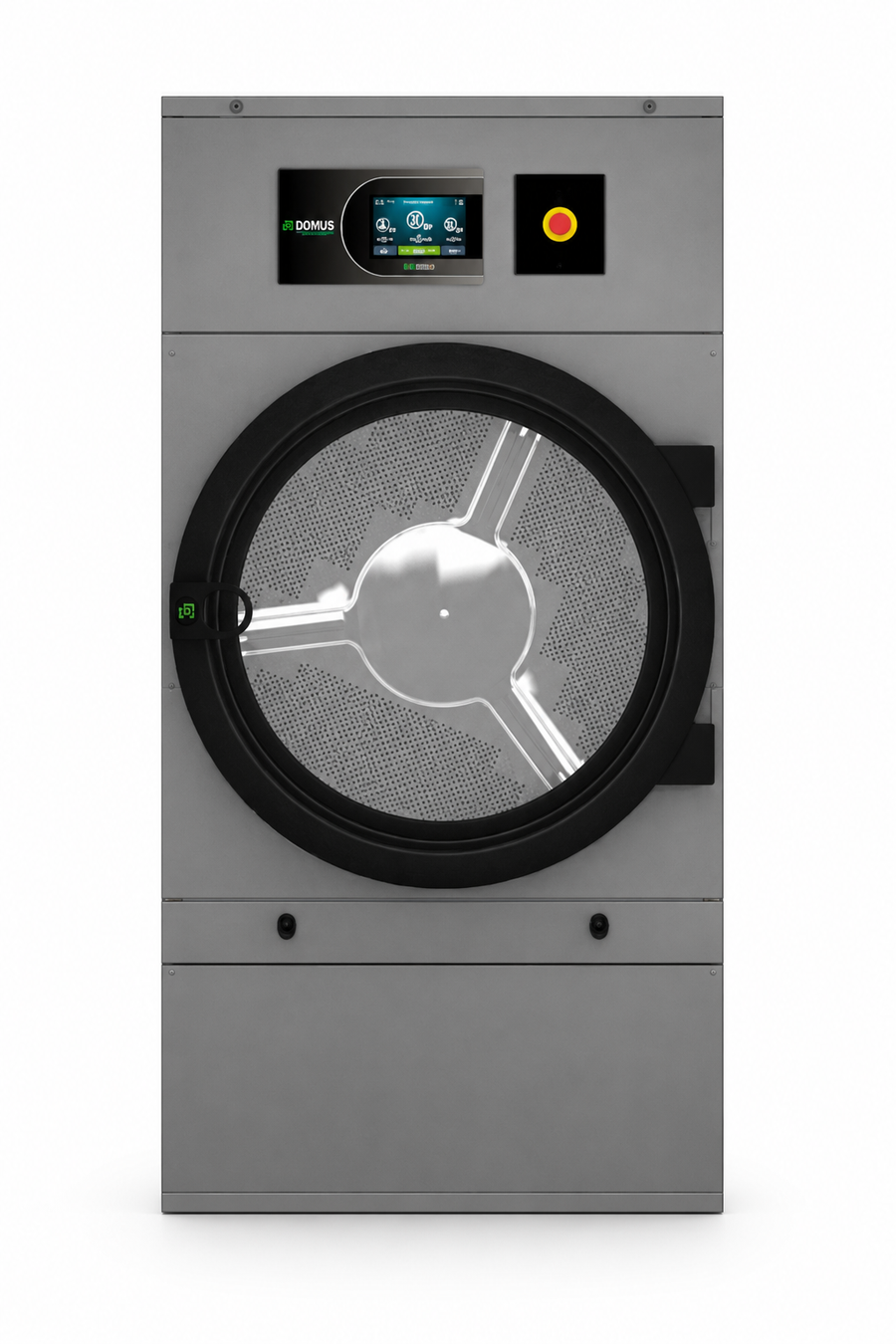

Domus DTT-28 ECO-ENERGY 30.6kg Commercial Dryer

The Domus DTT-28 ECO-ENERGY is a single-drum commercial dryer rated at 30.6 kg for 1:18 or 27.5 kg for 1:20, with a 550-litre drum. The loading opening is 802 mm and the 550-litre drum is 780 mm long. Reinforced drum, alternative filter mesh and stainless casing arrangements are options to discuss for the actual workload. Choose capacity against the dry textile workload and working window; a fill-ratio rating is not a guaranteed daily throughput.

ECO-ENERGY configuration

The exact ECO-ENERGY sheet lists EFFICIENT DRY intelligent humidity control with drum-inlet temperature control, AIR RE-CYCLE recirculation, insulation through the airflow circuit, double door glass and FULL FLOW mixed airflow. It also lists SFEX integrated fire extinguishing. These are the documented configuration features; energy use and cycle results depend on the actual textiles, residual moisture, settings and installation.

Controls and heating

Touch II has a programmable 7-inch touchscreen, USB and 37 languages. Reversing action, stainless steel drum and frequency inverter are listed as standard. Confirm connectivity licence and optional casing, filter, door and payment arrangements in the quotation. The electric version lists 30 kW heating and 31.35 kW installed electrical power. Gas heating is 41 kW with 1.35 kW electrical power; standard steam heating is 50.1 kW. The cited 400V 3N electric configuration uses 63 A protection.

Plan the installation

Nominal airflow is 1500 m³/h through a 200 mm exhaust. The gas table specifies a 1/2in inlet. Net dimensions are 985 × 1054 × 1975 mm (width × depth × height), with 230 kg net weight and a 802 mm loading opening. Check make-up air, exhaust, door clearance, lint-filter withdrawal and service access with the site and selected heating version.

Read the exact DTT-28 ECO-ENERGY specification · Compare dryers · Discuss the drying requirement with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
