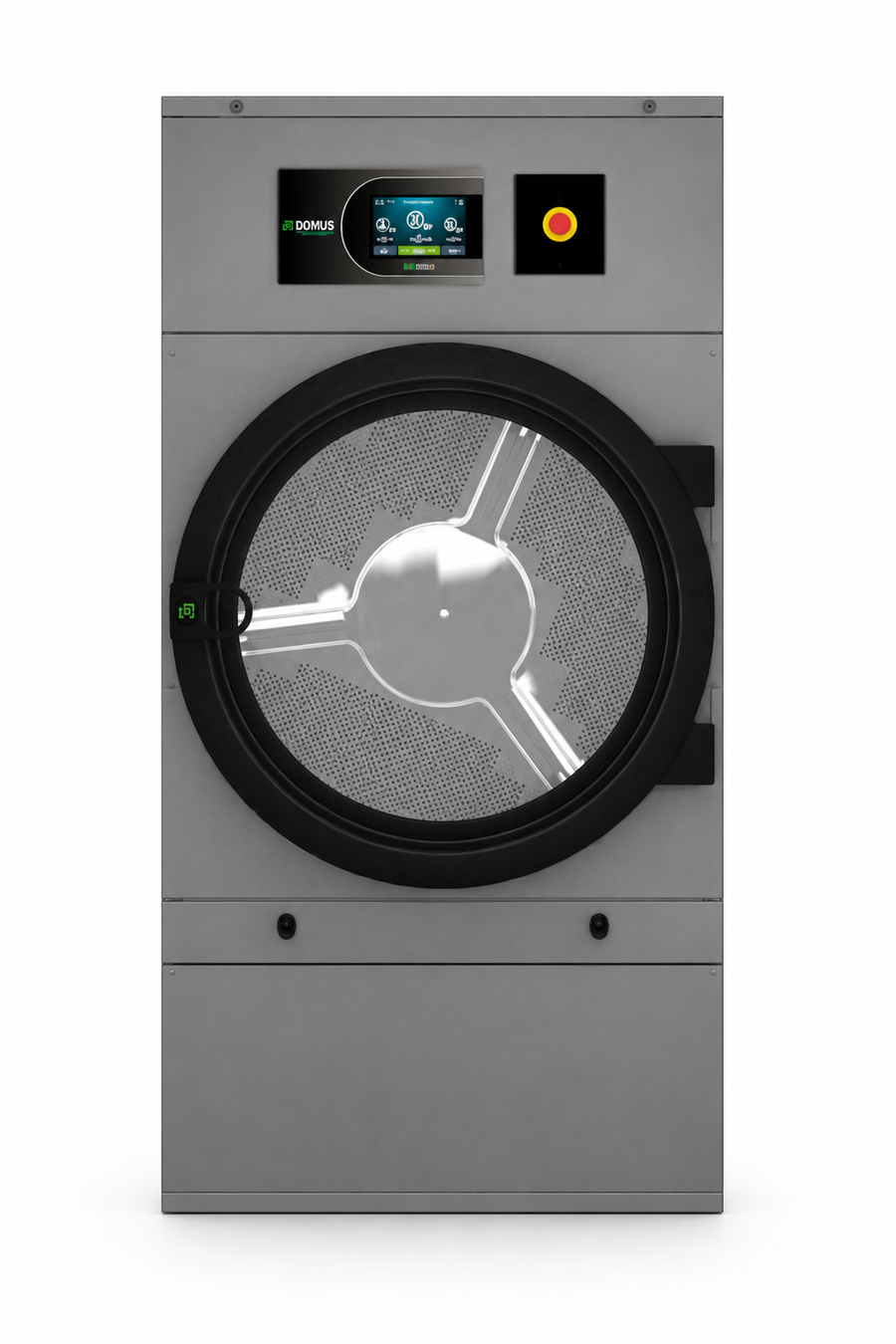

Domus DTT-35 36.7kg Commercial Dryer

The Domus DTT-35 is a DYNAMIC single-drum commercial dryer. The exact sheet rates its 660-litre drum at 36.7 kg for a 1:18 fill ratio or 33 kg for 1:20. These are dry-load ratings, not a guaranteed hourly output. The 660-litre drum is 936 mm long and the cabinet is 156 mm deeper than DTT-28. Confirm the exact payment equipment if specifying this model for self-service operation.

Controls and textile handling

Touch II uses a programmable 7-inch screen with USB, 37 languages and display-video capability. The source lists reversing drum action, a stainless steel drum and frequency inverter as standard, with mixed axial-radial DOUBLE FLOW airflow and a drawer lint filter. EFFICIENT DRY humidity sensing is an option on this standard DTT model. Confirm the control, sensor and connectivity arrangements included in your order.

Heating and site services

The electric table gives 36 kW heating and 37.15 kW installed electrical power. The gas version gives 41 kW gas heating with 1.15 kW electrical power; the standard steam heating table gives 50.1 kW. The electrical installation depends on the selected heating and supply version. The cited 400V 3N electric arrangement uses 63 A protection. The gas table specifies a 1/2in inlet. Nominal airflow is 1200 m³/h through a 200 mm exhaust. Exhaust design and make-up air need a site check.

Access and workload

The net dimensions are 985 × 1210 × 1975 mm (width × depth × height), with 260 kg net weight and a 802 mm loading opening. Allow for door opening, lint-filter withdrawal and service access. Tell ILS the textile mix, wash extraction, working window and available services so the drying stage can be assessed with the rest of the laundry.

Read the exact DTT-35 specification · Compare dryers · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
