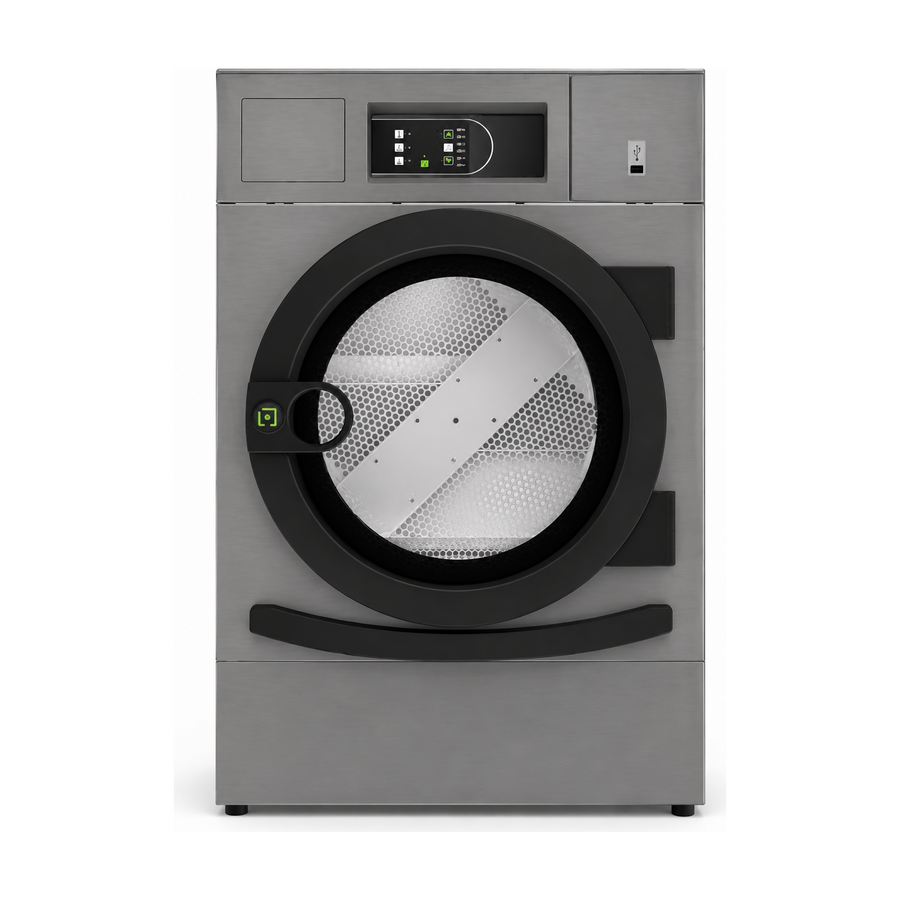

Domus HPD-10 M Heavy-Duty Dryer

The Domus HPD-10 M is a Heavy Professional conventional dryer. Its 200-litre drum is rated at 11.1 kg at 1:18 or 10 kg at 1:20. Drum diameter is 590 mm and depth is 690 mm. Its 480 mm door opening begins 250 mm above the floor. These figures describe the exact dry-load and loading arrangement; drying times depend on textiles and incoming moisture.

Control and ordered options

The M programmer lets the operator select time and temperature. The source describes OPL, coin-laundry and central-pay configurations, with the control panel optionally mounted below. It states a galvanised drum, with AISI 304 stainless steel drum and casing as options. The feature page mentions both white lacquered and grey skinplate panels, so confirm the actual ordered cabinet finish. Payment hardware and stacking arrangements must be specified for the supplied version.

Heating and site services

The electric table lists 4.5/6.75 kW heating with 4.92/7.17 kW installed electrical power. The gas arrangement lists 6.70 kW heating, 0.42 kW electrical power and a 1/2in gas inlet. The 400V 3N electric reference uses 16 A protection; the 230V single-phase reference uses 40 A. Nominal airflow is 300 m³/h through a 100 mm exhaust. Confirm the selected heating and supply arrangement, exhaust routing and make-up air with the site.

Access and application

Net dimensions are 680 × 775 × 1056 mm (width × depth × height), with 93 kg net weight. The source describes single-to-stack arrangements above a washer or another dryer, but the exact stacking, loading access and control position need confirmation. Allow for the drawer lint filter, door travel and servicing. Bring peak dry-load demand, wash extraction, room details and available working time to ILS before settling suitability and installation scope.

Read the exact HPD-10 M specification · Compare equipment · Discuss this model with ILS
