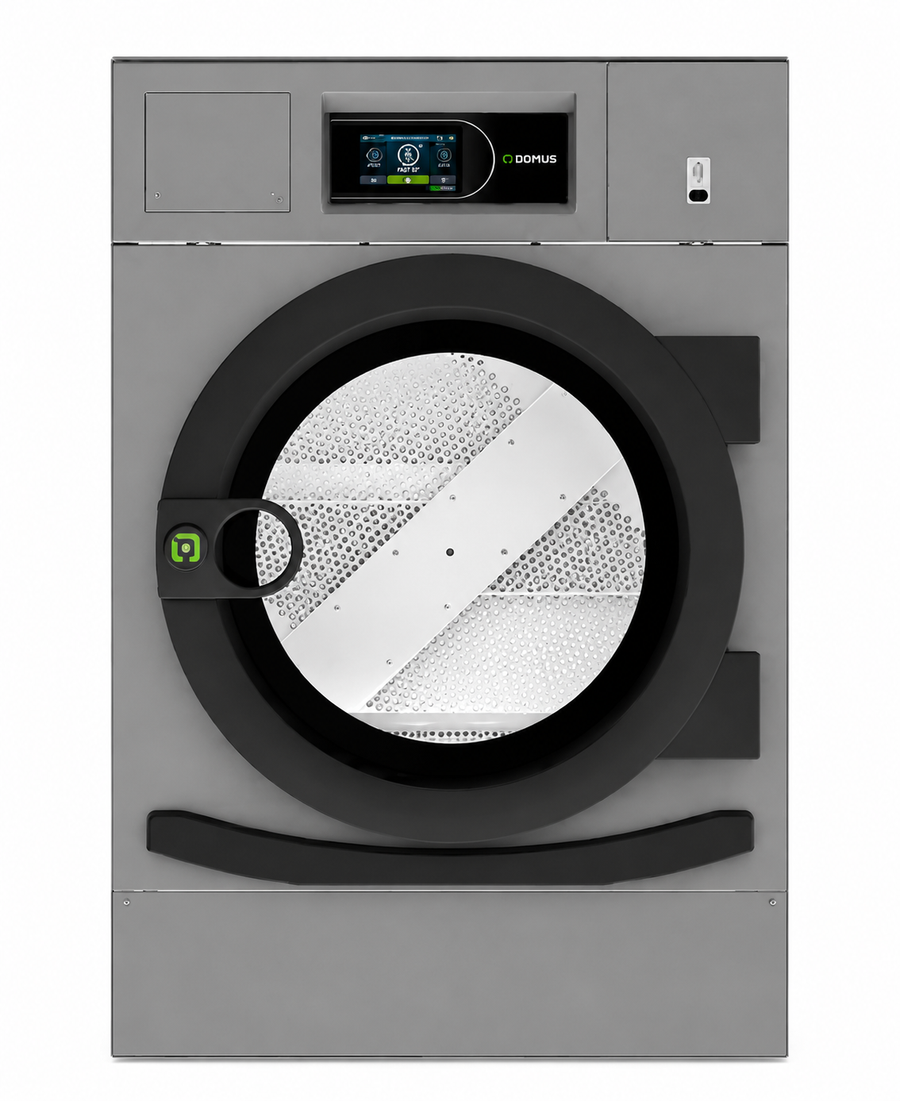

Domus HPD-10 TOUCH II Heavy-Duty Dryer

The Domus HPD-10 TOUCH II is a Heavy Professional conventional dryer. Its 200-litre drum is rated at 11.1 kg at 1:18 or 10 kg at 1:20. Drum diameter is 590 mm and depth is 690 mm. Its 480 mm door opening begins 250 mm above the floor. These figures describe the exact dry-load and loading arrangement; drying times depend on textiles and incoming moisture.

Control and ordered options

Touch II uses a programmable 4.3-inch screen with USB, 37 languages and display-video capability. The source describes Wet Cleaning features and connectivity. The standard drum is galvanised; AISI 304 stainless steel drum and outer casing are optional. EFFICIENT DRY humidity control, SFEX fire suppression, lower-mounted control and reverse door opening are listed options. Confirm the exact options and payment hardware rather than treating them as standard.

Heating and site services

The electric table lists 4.5/6.75 kW heating with 4.92/7.17 kW installed electrical power. The gas arrangement lists 6.70 kW heating, 0.42 kW electrical power and a 1/2in gas inlet. The 400V 3N electric reference uses 16 A protection; the 230V single-phase reference uses 40 A. Nominal airflow is 300 m³/h through a 100 mm exhaust. Confirm the selected heating and supply arrangement, exhaust routing and make-up air with the site.

Access and application

Net dimensions are 680 × 775 × 1056 mm (width × depth × height), with 93 kg net weight. The source describes single-to-stack arrangements above a washer or another dryer, but the exact stacking, loading access and control position need confirmation. Allow for the drawer lint filter, door travel and servicing. Bring peak dry-load demand, wash extraction, room details and available working time to ILS before settling suitability and installation scope.

Read the exact HPD-10 TOUCH II specification · Compare equipment · Discuss this model with ILS
