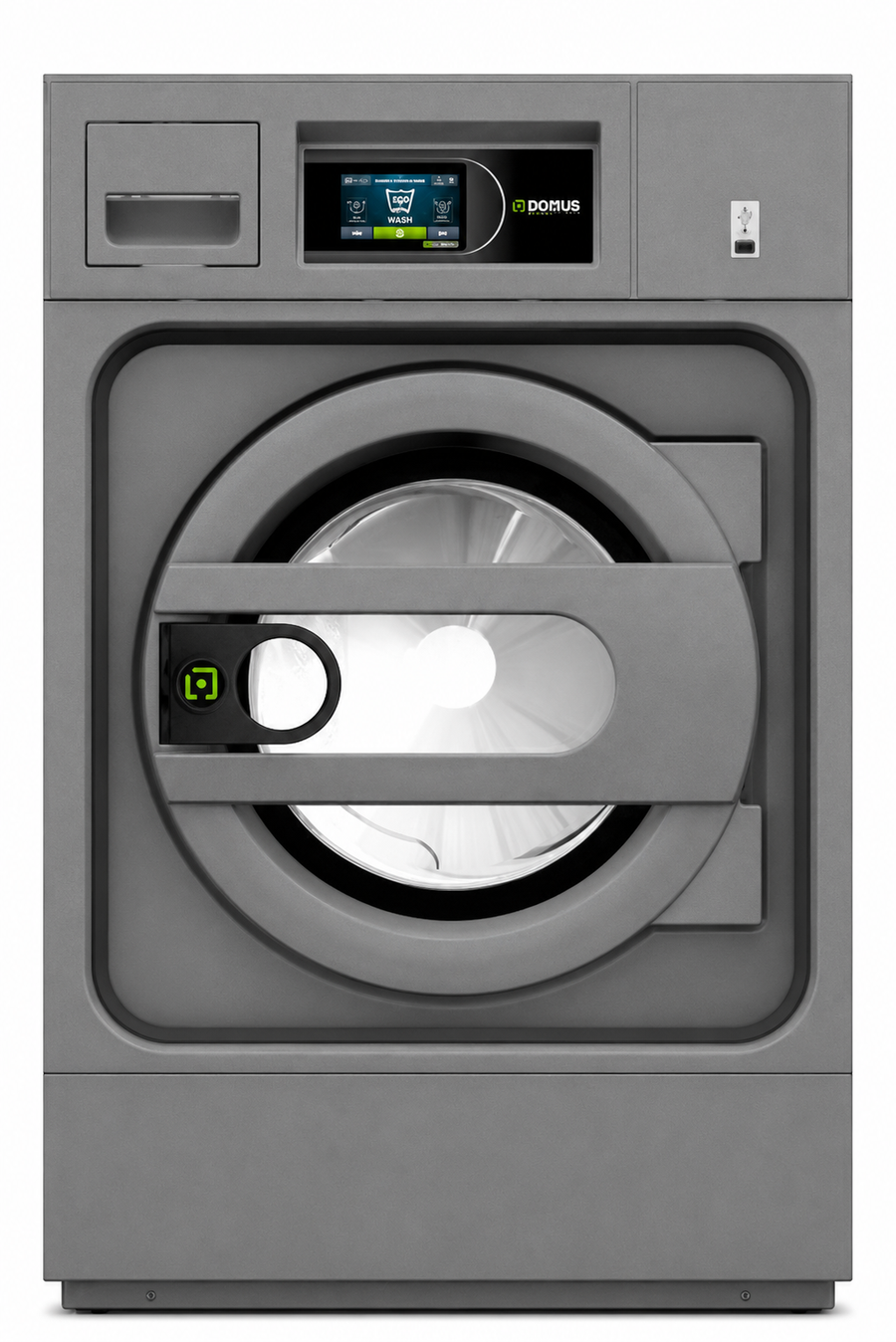

Domus HPW-10 TOUCH II Heavy-Duty Washer

The Domus HPW-10 TOUCH II is a soft-mounted Heavy Professional high-spin washer. The exact sheet rates its 100-litre drum at 11 kg for a 1:9 fill ratio or 10 kg for 1:10. Spin speed is 1250 rpm with G factor 450. The 532 mm-diameter drum is 425 mm deep. Use these exact ratings when comparing the model; the name alone does not state every available load ratio.

Control and dosing

Touch II uses a fully programmable 4.3-inch screen. The source lists eight dosing signals, two hot/cold water inlets, adjustable water levels and speeds for Wet Cleaning, and stored washing-process telemetry. Optimal Loading uses manual entry of load weight. Although the feature page mentions intelligent weighing, the technical table states no weighing system, so do not assume an automatic weighing sensor. Extra dosing signals and dosing pump kits are optional.

Water, drainage and heating

Electric heating is 6 kW with 6.25 kW maximum electric power; the hot-water arrangement lists 0.75 kW electrical power. The 400V 3N electric reference uses 16 A protection, while 230V single-phase electric uses 40 A. Water inlets are 3/4in at the source’s 2–4 kg/cm² pressure range; the drain reference is 2in with 140 l/min capacity. Pump/valve conversion kits are optional and the ordered drainage configuration needs confirmation. The table states no steam inlet or SLUICE option.

Access and application

Net dimensions are 680 × 742 × 1040 mm (width × depth × height), with 155 kg net weight and a 373 mm door opening. The source lists AISI 304 inner/outer drums, ribs and a robust aluminium door. Single-to-stack and OPL-to-self-service arrangements are described, with exact stacking, payment hardware, plinth and water-recovery options to agree. The technical table says double drain NO, while an optional double drain is described for valve versions; confirm any ordered conversion. Bring the site, peak workload, services and access details to ILS.

Read the exact HPW-10 TOUCH II specification · Compare equipment · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
