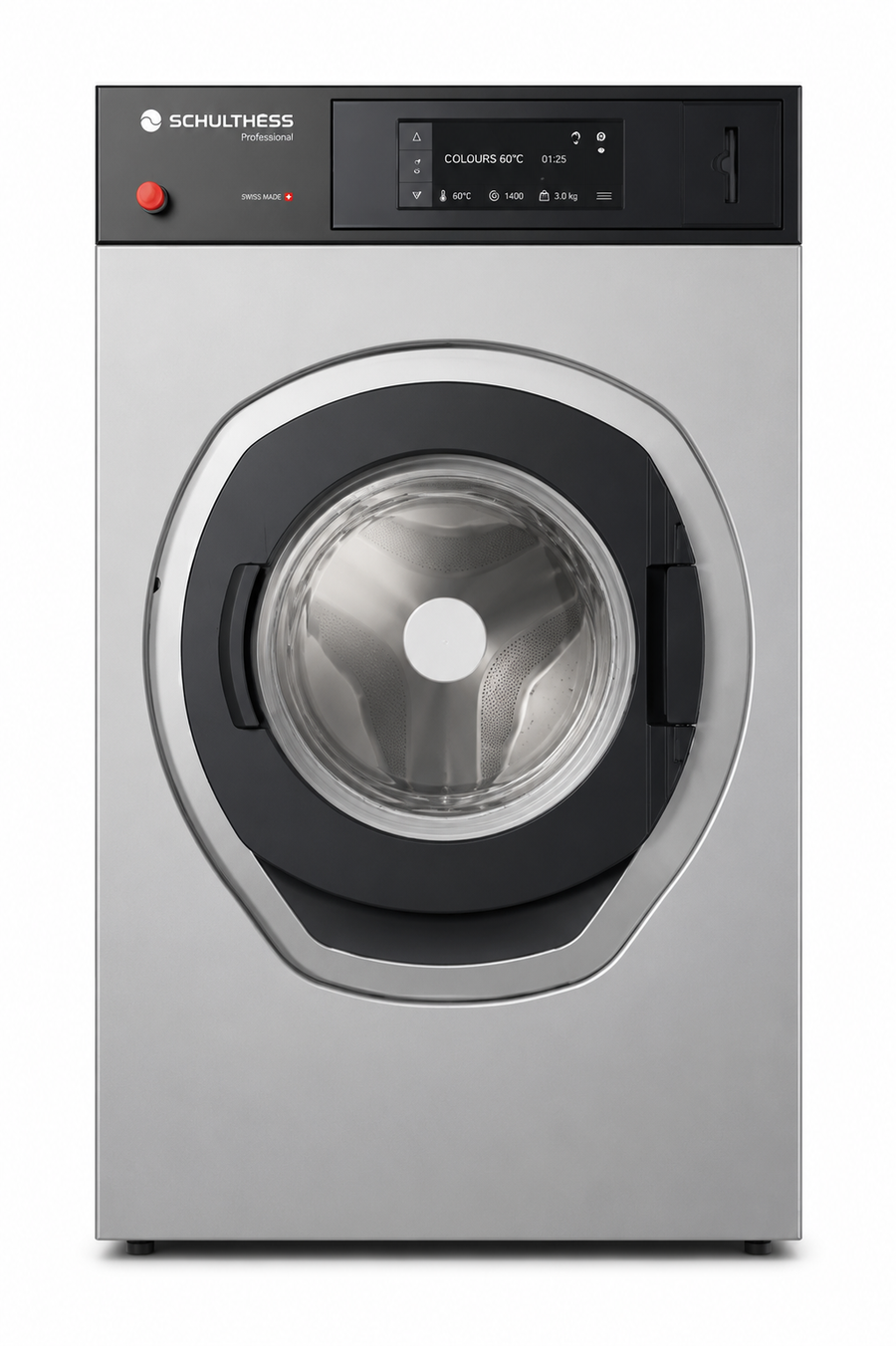

Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Schulthess · proLine washer
Schulthess proLine W160 18kg Washer
The Schulthess proLine W160 is a commercial high-spin washer with a 160-litre drum.
- Rated capacity
- 18 kg at 1:9 / 16 kg at 1:10
- Control
- Expert 4.3-inch colour display; Expert+ optional
- W × D × H
- 790 x 1035 x 1360 mm
- Weight
- 365 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Schulthess proLine W160 is a commercial high-spin washer with a 160-litre drum. Its dry-load rating is 18 kg at 1:9 or 16 kg at 1:10. The source gives 1100 rpm and a G-factor of 419. The 1035 mm cabinet depth is 100 mm greater than W130; the earlier listing incorrectly repeated the W130 depth. Its 450 mm loading opening and 160-litre drum are separate figures. The exact table does not list a drain-pump arrangement.
Controls and configuration
Expert control with a 4.3-inch colour display is listed as standard; Expert+, USB, stainless housing and the machine plinth are options. Check the exact required programme set and supplied dosing equipment before relying on a family feature list.
Site services
The connected electrical load is 18 kW, with 17.6 kW heating power and 32 A fuse protection in the cited version. Water connections are 3/4in. The source specifies cold and hot-water inflow above 13 litres/min, hot water up to 70°C and valve drainage at 260 litres/min. Optional payment and dosing arrangements must be checked for the exact model.
Plan the whole laundry
Describe the dry textile workload, peak operating window, available services, access route and finishing requirements when enquiring. Cabinet dimensions are a starting point: confirm the final installation drawing, door clearance and service access for the ordered configuration. Equipment price, delivery and installation scope are agreed by quotation.
Review the cited specification · Compare washers · Discuss this model with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Schulthess |
|---|---|
| Range | W |
| Equipment type | washer |
| Rated capacity | 18 kg at 1:9 / 16 kg at 1:10 |
| Condition | new |
| Weight | 365.0 kg |
Controls & configuration
| Control | Expert 4.3-inch colour display; Expert+ optional |
|---|---|
| Programmes | Expert control; confirm the required programme set and optional Expert+ configuration |
Site & services
| Electrical supply | 400V 3N / 50Hz; confirm the ordered circuit arrangement |
|---|---|
| Power | 18 kW connected load / 17.6 kW heating; 32 A protection in cited version |
| Water connection | 3/4in cold/hot water; hot-water supply max. 70°C |
| Drain | Drain valve / 260 l/min; confirm outlet arrangement |
| Dimensions (W × D × H) | 790 x 1035 x 1360 mm |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
