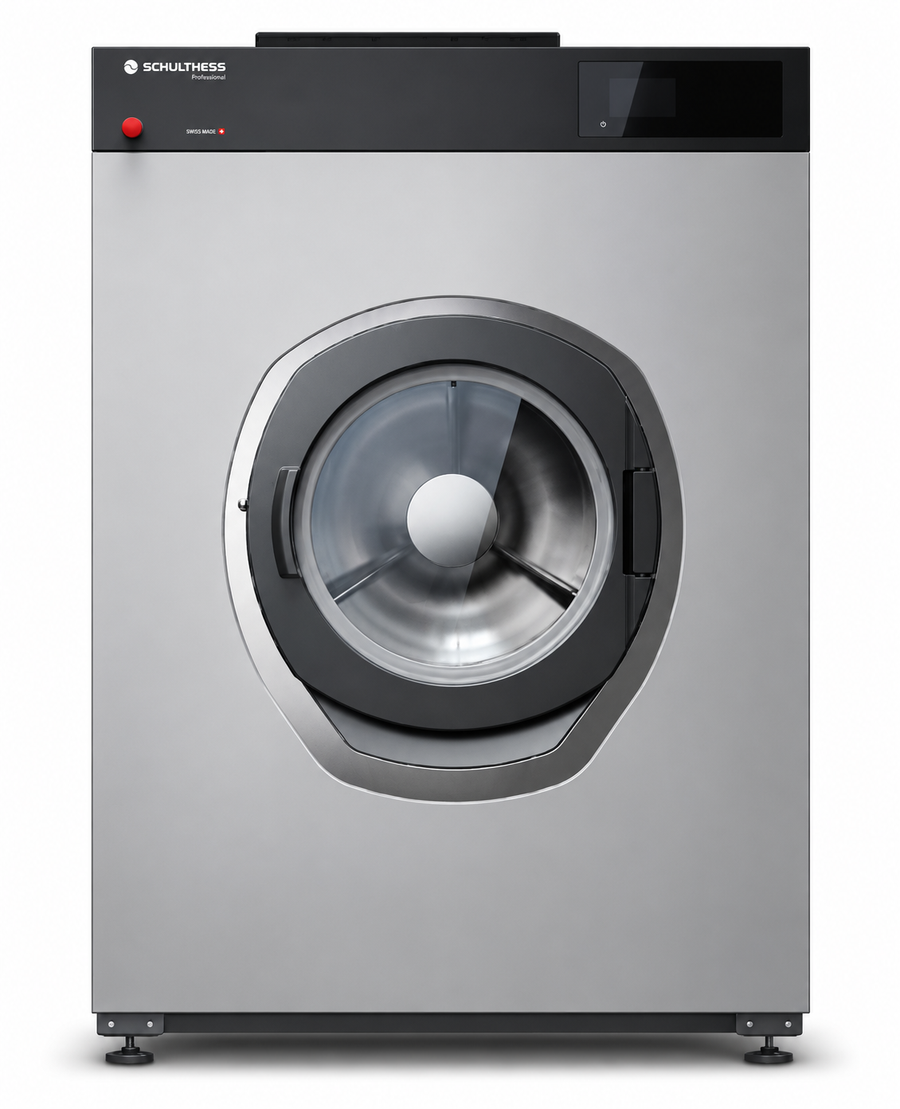

Manufacturer photograph. The supplied configuration is confirmed in your quotation.

Schulthess · proLine washer

Schulthess proLine W220 24kg Washer

The Schulthess proLine W220 is a commercial high-spin washer with a 220-litre drum.

Rated capacity: 24 kg at 1:9 / 22 kg at 1:10
Control: 4.3-inch colour display; confirm the supplied control configuration
W × D × H: 1050 x 970 x 1555 mm; 1815 mm high including optional base
Weight: 455 kg

Quoted for your sitePrice on application

Your quotation confirms the specification, delivery and any installation for your site.

Ask a specialist about this machine

Datasheet PDF ↗

Delivery is quoted for your site, with installation available as an option.
Utilities, access and options are confirmed with you before ordering.
Questions? Call 07411 229429, Mon–Fri, 9am–5pm.

Overview

The Schulthess proLine W220 is a commercial high-spin washer with a 220-litre drum. Its dry-load rating is 24 kg at 1:9 or 22 kg at 1:10. The source gives 1000 rpm and a G-factor of 447. The cabinet is 1555 mm high; the source separately gives 1815 mm including the optional base. The loading-door opening is 450 mm, while the distinct drum-opening figure is 800 mm. The 14 September 2026 manufacturer sheet lists a 2.2 kW drive.

Controls and configuration

The manufacturer lists a 4.3-inch colour display, 24 standard programmes and 24 freely programmable positions. Dosing connection, connectivity, load shedding and the machine base are options to specify in the order. The source does not list a standard drain pump or USB connection.

Site services

The connected electrical load is 20 kW, with 17.4 kW heating power and 32 A fuse protection in the cited version. Water connections are 3/4in. The manufacturer specifies a 76.2 mm drain valve, 260 litres/min drainage, cold-water inflow above 65 litres/min and hot-water inflow above 30 litres/min. The older distributor sheet reverses the water and drain connection labels.

Plan the whole laundry

Describe the dry textile workload, peak operating window, available services, access route and finishing requirements when enquiring. Cabinet dimensions are a starting point: confirm the final installation drawing, door clearance and service access for the ordered configuration. Equipment price, delivery and installation scope are agreed by quotation.

Review the cited specification · Compare washers · Discuss this model with ILS

Specification

Manufacturer datasheet (PDF)

Model & workload

Model details for Schulthess proLine W220 24kg Washer
Brand	Schulthess
Range	W
Equipment type	washer
Rated capacity	24 kg at 1:9 / 22 kg at 1:10
Condition	new
Weight	455.0 kg

Controls & configuration

Controls for Schulthess proLine W220 24kg Washer
Control	4.3-inch colour display; confirm the supplied control configuration
Programmes	24 standard programmes / 24 freely programmable positions

Site & services

Site requirements for Schulthess proLine W220 24kg Washer
Electrical supply	400V 3N / 50Hz; confirm the ordered circuit arrangement
Power	20 kW connected load / 17.4 kW heating; 32 A protection in cited version
Water connection	3/4in cold/hot water; hot-water supply max. 70°C
Drain	76.2 mm (3in) drain valve / 260 l/min
Dimensions (W × D × H)	1050 x 970 x 1555 mm; 1815 mm high including optional base

Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.

Documents

Manufacturer files. They open in a new tab.

Delivery & installation

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.
