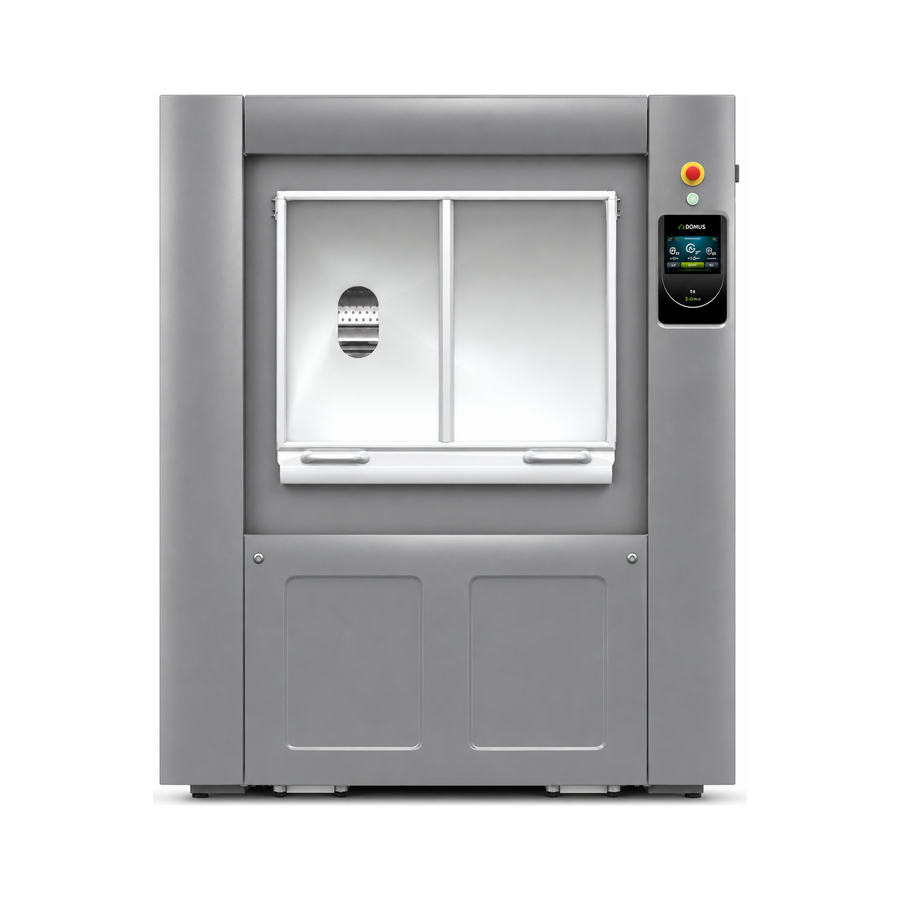

Domus ASA-100 100kg Barrier Washer Open the full-size image in a new tab

Manufacturer photograph. The supplied configuration is confirmed in your quotation.

Domus · ASA barrier washer

Domus ASA-100 100kg Barrier Washer

The Domus ASA-100 TOUCH II is a pass-through barrier washer with a two-compartment Pullman drum.

Rated capacity
100 kg at 1:9 / 90 kg at 1:10
Control
Double TOUCH II 7-inch screens standard
W × D × H
1742 x 1468 x 1982 mm
Weight
1900 kg
Quoted for your sitePrice on application

Your quotation confirms the specification, delivery and any installation for your site.

Ask a specialist about this machine
Datasheet PDF ↗

  • Delivery is quoted for your site, with installation available as an option.
  • Utilities, access and options are confirmed with you before ordering.
  • Questions? Call 07411 229429, Mon–Fri, 9am–5pm.

Overview

The Domus ASA-100 TOUCH II is a pass-through barrier washer with a two-compartment Pullman drum. The manufacturer rates capacity at 100 kg at a 1:9 fill ratio or 90 kg at 1:10. The textile mix and chosen process determine the appropriate loading basis.

What this specification establishes

Double 7-inch TOUCH II screens, the motor brake and double drainage are listed as standard. The specified G-factor is 325. Its opposed doors and divided drum distinguish this model from a single-compartment barrier washer.

Options and installation

Automatic drum positioning is an option; confirm it separately from the standard motor brake. Total electrical power is 75 kW for the electric version or 15 kW for the steam version. Installation and handling space must follow the drawing for the supplied configuration.

Prepare a useful enquiry

Discuss batch separation, staff handling, site access, utilities and clean/soiled flow. The equipment specification must sit alongside the facility’s own process and validation requirements.

Review the manufacturer specification · Build your equipment project · Discuss this model with ILS

Specification

Manufacturer datasheet (PDF)

Model & workload

Model details for Domus ASA-100 100kg Barrier Washer
BrandDomus
RangeBarrier washers - Pullman
Equipment typewasher
Rated capacity100 kg at 1:9 / 90 kg at 1:10
Conditionnew
Weight1900.0 kg

Controls & configuration

Controls for Domus ASA-100 100kg Barrier Washer
ControlDouble TOUCH II 7-inch screens standard
Payment compatibilityNo self-service payment configuration established in the linked ASA-100 datasheet

Site & services

Site requirements for Domus ASA-100 100kg Barrier Washer
Electrical supply230V 3+T (steam model) | 400V 3+N+T
PowerElectric version: 75 kW total electrical; steam version: 15 kW electrical
Water connection1in water inlet (3 inlets)
Drain2x 3in drains / 2x200 l/min (double drainage standard)
Dimensions (W × D × H)1742 x 1468 x 1982 mm

Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.

Documents

Manufacturer files. They open in a new tab.

Delivery & installation

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail

Need this machine specified for your site?

Tell us about your workload, space and utilities. We will come back with a clear, written quotation.

Request a quote Call 07411 229429
