Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Domus · High-spin washer

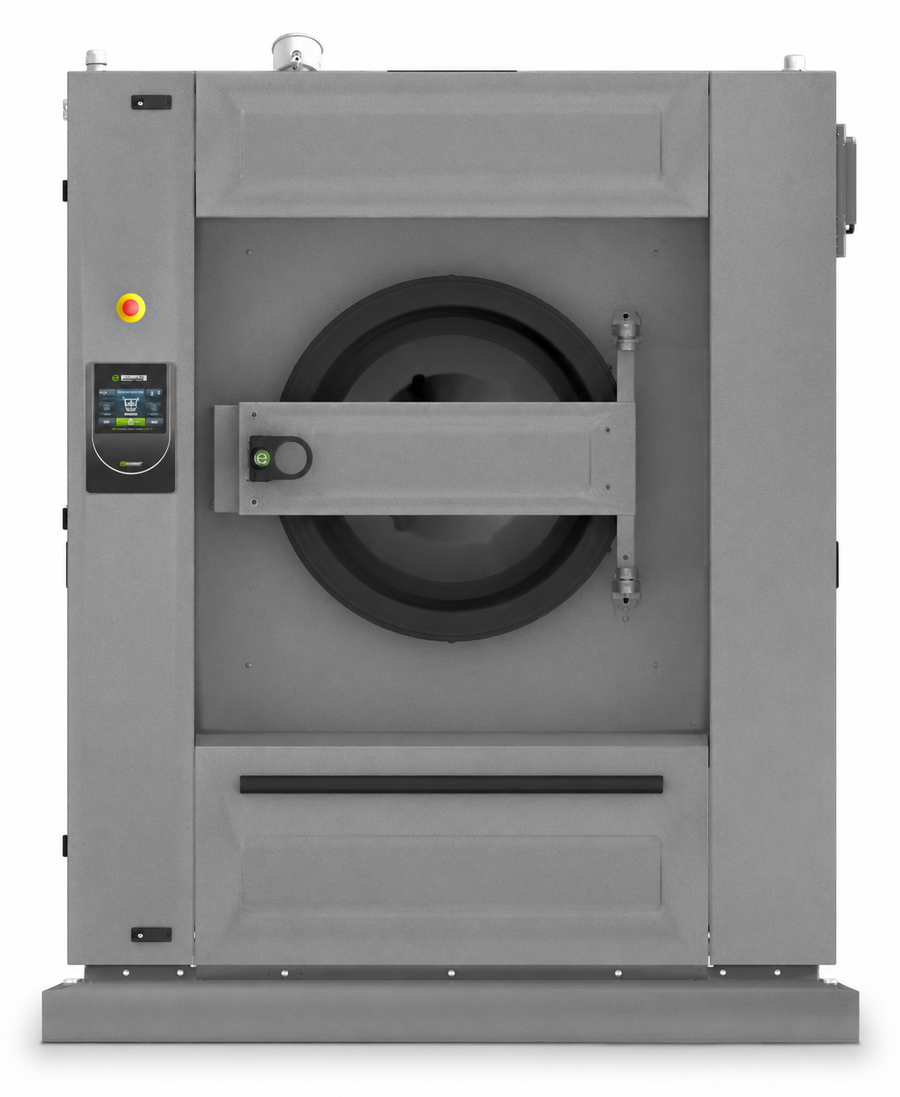

Domus DHS-100C 105kg Commercial Washer
The Domus DHS-100C TOUCH II is a soft-mounted commercial high-spin washer with a 950-litre drum.
- Rated capacity
- 105 kg at 1:9 / 95 kg at 1:10
- Control
- TOUCH II 7-inch touchscreen
- W × D × H
- 1836 x 1710 x 2245 mm
- Weight
- 2300 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Domus DHS-100C TOUCH II is a soft-mounted commercial high-spin washer with a 950-litre drum. Dry-load ratings are 105 kg at a 1:9 fill ratio and 95 kg at 1:10. The 950-litre drum has a 700 mm door opening and a G-factor of 350. The exact table lists steam/hot-water electrical demand but leaves electric heating and maximum electric-model power blank; an electric-heated version is not established by this document.
What this specification establishes
The programmable TOUCH II control has a 7-inch touchscreen. Eight dosing signals are standard and six additional signals are optional. The drum and vat are AISI 304 stainless steel; the standard outer cabinet is grey skinplate. The stated G-factor is 350, which describes extraction force rather than measured process savings.
Options and installation
Double drainage, weighing and tilting are options. The door-base height differs between table and drawing, so use a confirmed final configuration drawing when designing the loading position and handling clearances. An electric-heated configuration is not confirmed by the model table. The steam/hot-water version requires 15 kW electrical power in addition to its external heat source.
Prepare a useful enquiry
Share the textile mix, peak dry-load weight, operating window and available services. Check the 1-1/2in water inlet, 4in drain valve / 500 l/min, supply arrangement and final handling route against the exact configuration. Pricing, delivery and installation are confirmed in the quotation.
Review the manufacturer specification · Build your equipment project · Discuss this model with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Domus |
|---|---|
| Range | High Spin Washers |
| Equipment type | washer |
| Rated capacity | 105 kg at 1:9 / 95 kg at 1:10 |
| Condition | new |
| Weight | 2300.0 kg |
Controls & configuration
| Control | TOUCH II 7-inch touchscreen |
|---|---|
| Payment compatibility | Self-service version listed NO in the exact DHS-100C technical table |
Site & services
| Electrical supply | Steam/hot-water: 230V 3+E or 400V 3+N+E; confirm the supplied configuration |
|---|---|
| Power | Steam/hot-water versions: 15 kW electrical; electric-heated version not established in exact technical table |
| Water connection | 1-1/2in water inlet |
| Drain | 4in drain valve / 500 l/min |
| Dimensions (W × D × H) | 1836 x 1710 x 2245 mm |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
