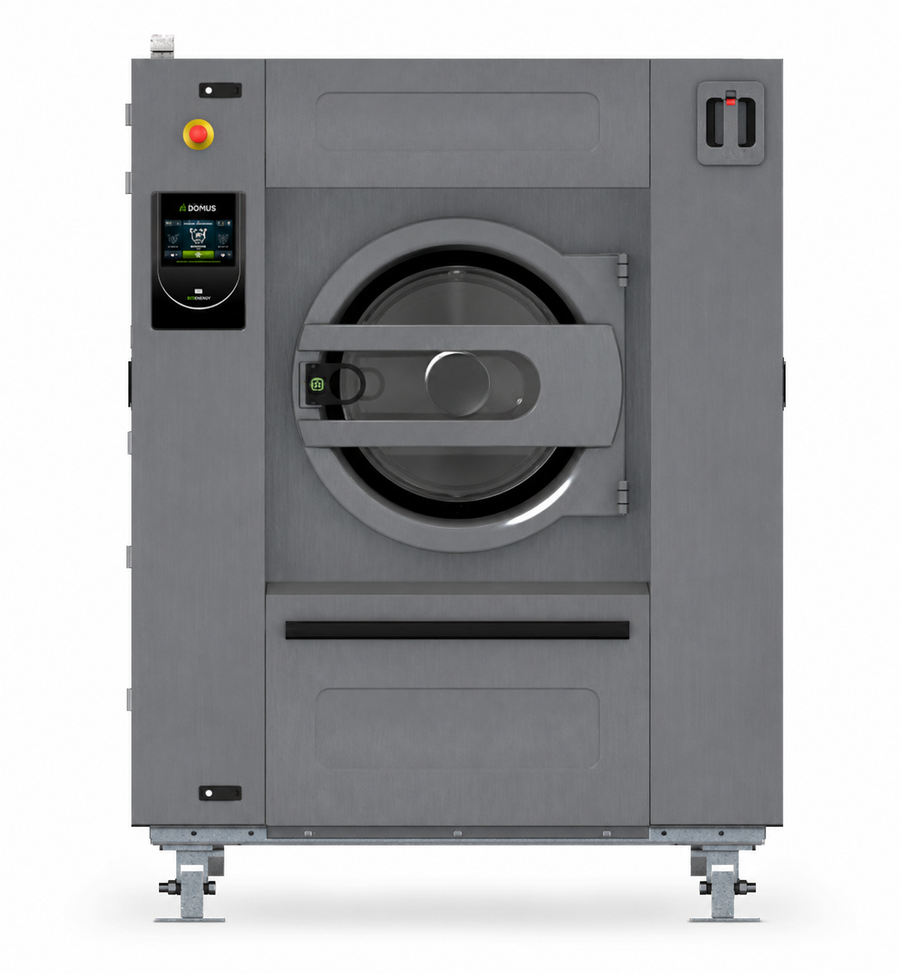

Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Domus · High-spin washer
Domus DHS-80C 85kg Commercial Washer
The Domus DHS-80C TOUCH II is a soft-mounted commercial high-spin washer with a 770-litre drum.
- Rated capacity
- 85 kg at 1:9 / 77 kg at 1:10
- Control
- TOUCH II 7-inch touchscreen
- W × D × H
- 1420 x 1645 x 1890 mm
- Weight
- 1800 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Domus DHS-80C TOUCH II is a soft-mounted commercial high-spin washer with a 770-litre drum. Dry-load ratings are 85 kg at a 1:9 fill ratio and 77 kg at 1:10. Its 770-litre drum is deeper than the DHS-60C drum, and the cabinet depth is 1645 mm. The source gives different electric-heating and maximum-power ratings for the 400V and 230V versions; one power figure cannot describe both.
What this specification establishes
The programmable TOUCH II control has a 7-inch touchscreen. Eight dosing signals are standard and six additional signals are optional. The drum and vat are AISI 304 stainless steel; the standard outer cabinet is grey skinplate. The stated G-factor is 450, which describes extraction force rather than measured process savings.
Options and installation
Double drainage, automatic weighing and tilting are optional. The drawing includes separate tilting dimensions, so the stationary cabinet dimensions must not be treated as the complete operating envelope of a tilt configuration. Maximum electric-version power is 51 kW at 400V / 39 kW at 230V. The steam/hot-water version requires 15 kW electrical power in addition to its external heat source.
Prepare a useful enquiry
Share the textile mix, peak dry-load weight, operating window and available services. Check the 1in water inlet, 3in drain valve / 200 l/min, supply arrangement and final handling route against the exact configuration. Pricing, delivery and installation are confirmed in the quotation.
Review the manufacturer specification · Build your equipment project · Discuss this model with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Domus |
|---|---|
| Range | High Spin Washers |
| Equipment type | washer |
| Rated capacity | 85 kg at 1:9 / 77 kg at 1:10 |
| Condition | new |
| Weight | 1800.0 kg |
Controls & configuration
| Control | TOUCH II 7-inch touchscreen |
|---|---|
| Payment compatibility | Self-service version listed NO in the exact DHS-80C technical table |
Site & services
| Electrical supply | 230V 3+E or 400V 3+N+E; electrical heating power differs by supply version |
|---|---|
| Power | Electric version: max. 51 kW at 400V / 39 kW at 230V; steam/hot-water versions: 15 kW electrical |
| Water connection | 1in water inlet |
| Drain | 3in drain valve / 200 l/min |
| Dimensions (W × D × H) | 1420 x 1645 x 1890 mm |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
