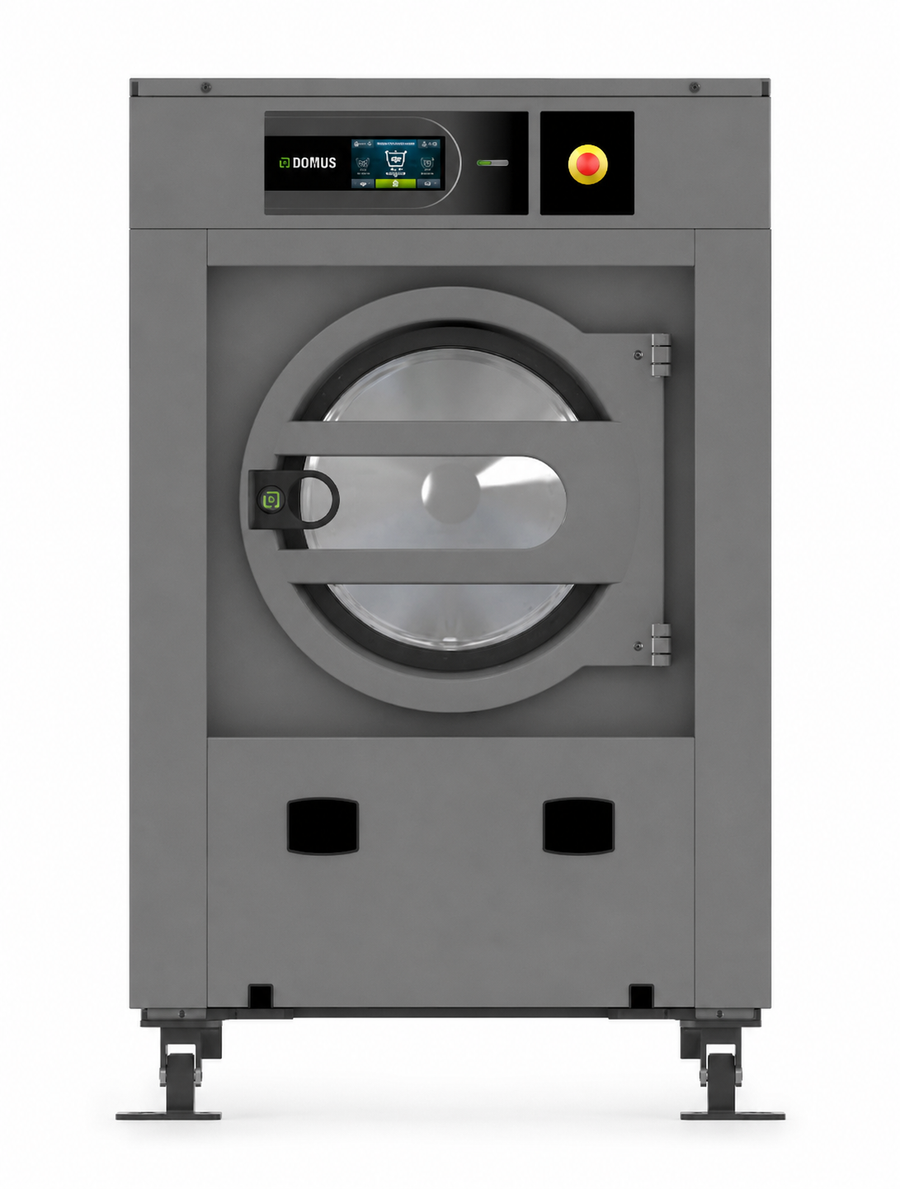

Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Domus · High-spin washer
Domus DHS-45C 47kg Commercial Washer
The Domus DHS-45C TOUCH II is a soft-mounted commercial high-spin washer with a 450-litre drum.
- Rated capacity
- 47 kg at 1:9 / 42 kg at 1:10
- Control
- TOUCH II 7-inch touchscreen
- W × D × H
- Confirm final drawing: width 1095 mm, depth 1304 mm; height 1730 mm in table / 1767 mm in drawing
- Weight
- 747 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Domus DHS-45C TOUCH II is a soft-mounted commercial high-spin washer with a 450-litre drum. Dry-load ratings are 47 kg at a 1:9 fill ratio and 42 kg at 1:10. The exact table rates the load at 47 kg at 1:9 or 42 kg at 1:10, not 45 kg at the second ratio. It lists self-service as NO even though family copy mentions COIN through DHS-45C; a self-service supply must therefore be checked explicitly.
What this specification establishes
The programmable TOUCH II control has a 7-inch touchscreen. Eight dosing signals are standard and six additional signals are optional. The drum and vat are AISI 304 stainless steel; the standard outer cabinet is grey skinplate. The stated G-factor is 450, which describes extraction force rather than measured process savings.
Options and installation
The linked table gives a net height of 1730 mm, but its drawing gives 1767 mm. Confirm the final height and required clearances rather than selecting one figure. Double drainage and weighing/tilting are marked optional in the table. Maximum electric-version power is 22 kW. The steam/hot-water version requires 6 kW electrical power in addition to its external heat source.
Prepare a useful enquiry
Share the textile mix, peak dry-load weight, operating window and available services. Check the 3/4in water inlet, 3in drain valve / 200 l/min, supply arrangement and final handling route against the exact configuration. Pricing, delivery and installation are confirmed in the quotation.
Review the manufacturer specification · Build your equipment project · Discuss this model with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Domus |
|---|---|
| Range | High Spin Washers |
| Equipment type | washer |
| Rated capacity | 47 kg at 1:9 / 42 kg at 1:10 |
| Condition | new |
| Weight | 747.0 kg |
Controls & configuration
| Control | TOUCH II 7-inch touchscreen |
|---|---|
| Payment compatibility | Not confirmed: exact technical table says NO; family copy describes COIN through DHS-45C |
Site & services
| Electrical supply | 230V 3+E or 400V 3+N+E; confirm heating configuration and circuit requirements |
|---|---|
| Power | Electric version: max. 22 kW; steam/hot-water versions: 6 kW electrical |
| Water connection | 3/4in water inlet |
| Drain | 3in drain valve / 200 l/min |
| Dimensions (W × D × H) | Confirm final drawing: width 1095 mm, depth 1304 mm; height 1730 mm in table / 1767 mm in drawing |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
