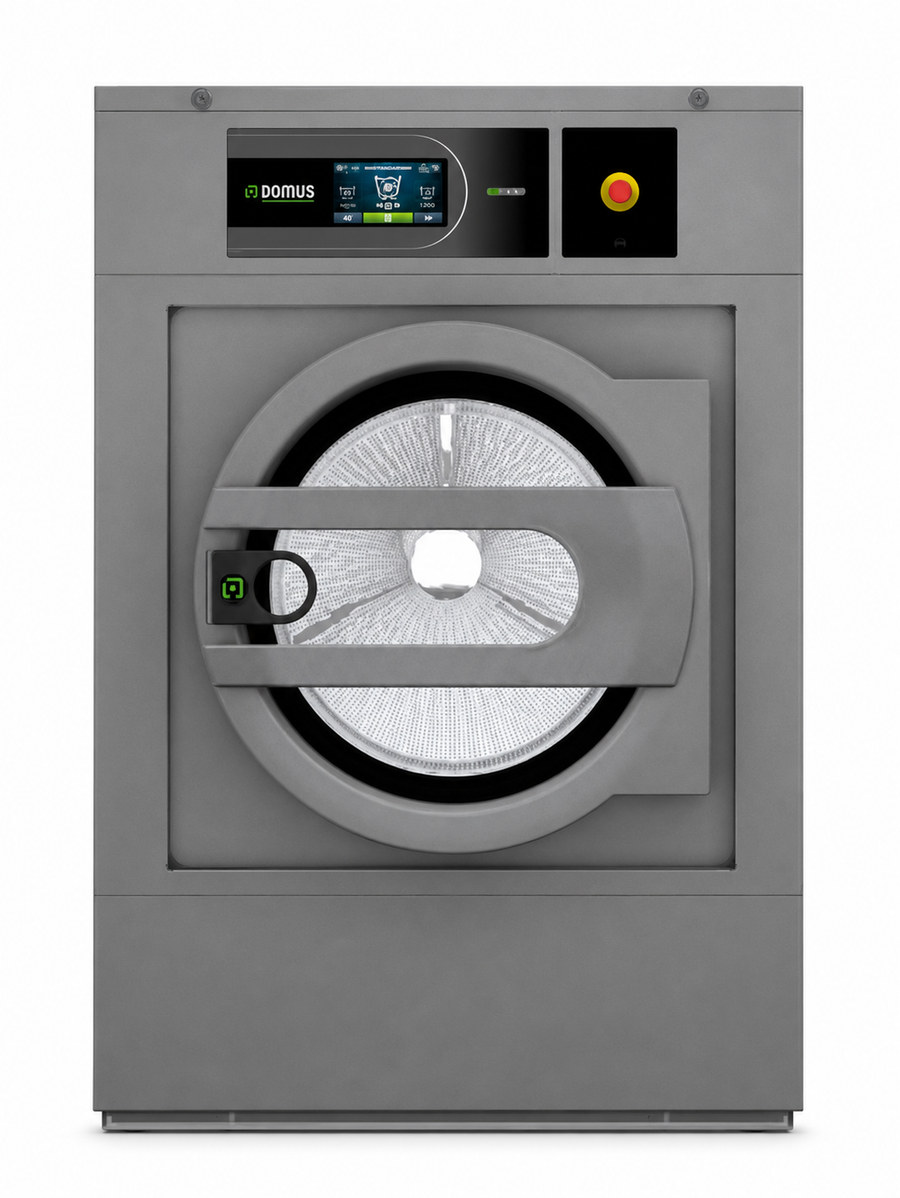

Domus DLS-35C 39kg Commercial Washer

The Domus DLS-35C TOUCH II is a hard-mounted commercial low-spin washer. Its dry-load rating is 39 kg at a 1:9 fill ratio or 35 kg at 1:10. The 350-litre drum uses a 560 mm door opening. The exact cabinet dimensions are 979 × 1155 × 1411 mm; the higher-spin DHS-35C dimensions must not be substituted for this low-spin model.

Controls and construction

The programmable TOUCH II control uses a 7-inch touchscreen, a USB port and eight standard dosing signals, with six additional signals optional. The drum and vat are AISI 304 stainless steel; skinplate cabinet panels are standard. Load-weight indication is manual and does not establish an automatic weighing system.

Configuration and options

The exact model table lists a self-service version; the payment equipment and supplied operating mode need confirmation. Double drainage and a sluice drum are options, with weighing and tilting listed NO. Door-base height differs between the technical table and drawing; confirm the final loading-position drawing instead of choosing one of those figures. Maximum electric-version power is 22 kW. Hot-water/steam configurations list 4 kW electrical demand in addition to their external heat source.

Plan the installation

A hard-mounted washer requires suitable floor anchoring. Share the peak dry-load weight, textile mix, operating window, floor information and available services with ILS. The 3/4in water inlet, 3in drain valve and quoted 200 l/min drain capacity must be assessed against the final configuration and site drainage. Equipment price, delivery and installation are confirmed by quotation.

Review the exact manufacturer specification · Compare suitable washers · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
