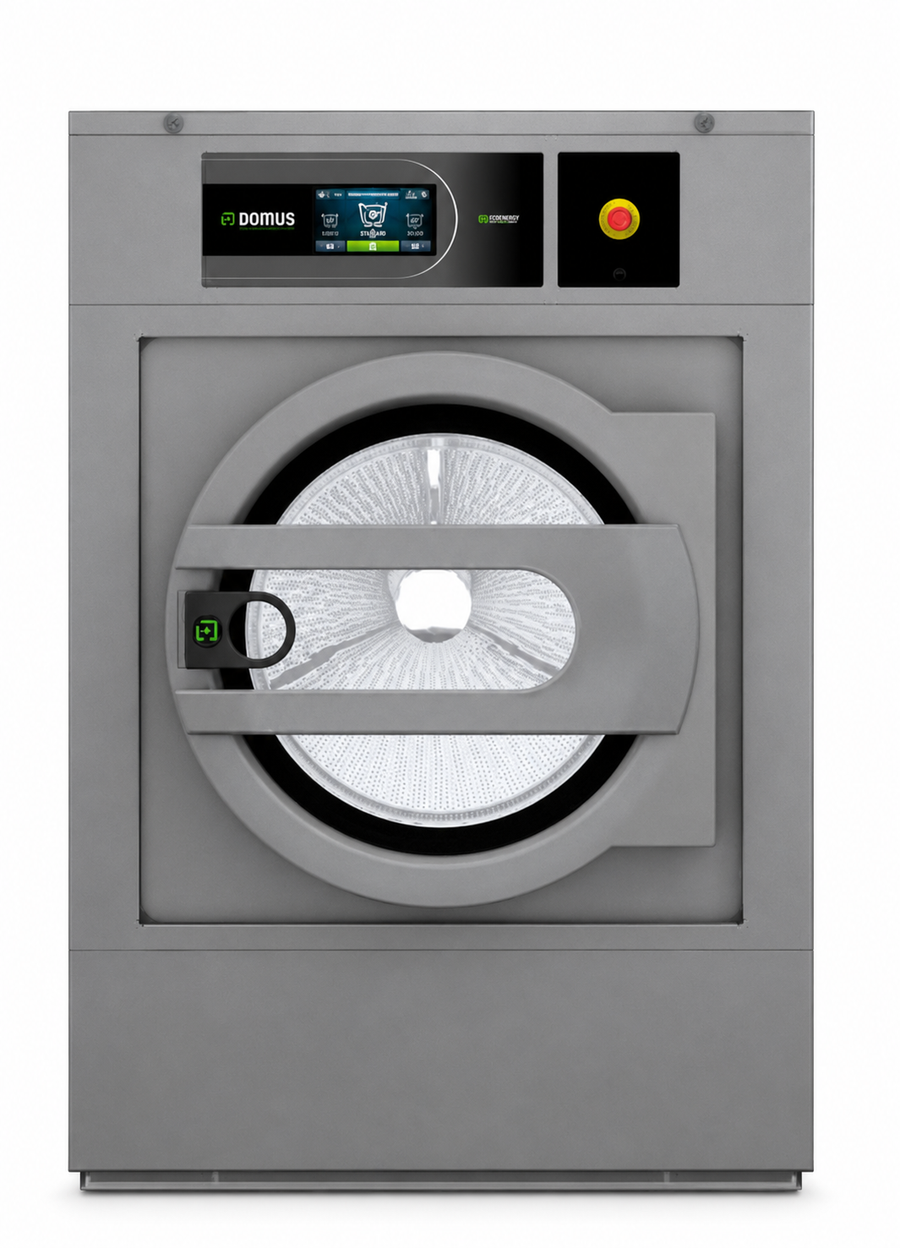

Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Domus · Low-spin washer
Domus DLS-45C 47kg Commercial Washer
The Domus DLS-45C TOUCH II is a hard-mounted commercial low-spin washer.
- Rated capacity
- 47 kg at 1:9 / 42 kg at 1:10
- Control
- TOUCH II 7-inch touchscreen
- W × D × H
- 979 x 1325 x 1411 mm
- Weight
- 600 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Domus DLS-45C TOUCH II is a hard-mounted commercial low-spin washer. Its dry-load rating is 47 kg at a 1:9 fill ratio or 42 kg at 1:10. The exact load ratings are 47 kg at 1:9 and 42 kg at 1:10. The cabinet is 170 mm deeper than the DLS-35C cabinet, even though both share width and height.
Controls and construction
The programmable TOUCH II control uses a 7-inch touchscreen, a USB port and eight standard dosing signals, with six additional signals optional. The drum and vat are AISI 304 stainless steel; skinplate cabinet panels are standard. Load-weight indication is manual and does not establish an automatic weighing system.
Configuration and options
The exact model table lists a self-service version; the payment equipment and supplied operating mode need confirmation. Unlike the DHS-45C technical table, this DLS-45C table explicitly lists a self-service version YES. Double drainage is optional, with weighing and tilting listed NO. Confirm the loading height because the table and drawing give different door-base figures. Maximum electric-version power is 22 kW. Hot-water/steam configurations list 6 kW electrical demand in addition to their external heat source.
Plan the installation
A hard-mounted washer requires suitable floor anchoring. Share the peak dry-load weight, textile mix, operating window, floor information and available services with ILS. The 3/4in water inlet, 3in drain valve and quoted 200 l/min drain capacity must be assessed against the final configuration and site drainage. Equipment price, delivery and installation are confirmed by quotation.
Review the exact manufacturer specification · Compare suitable washers · Discuss this model with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Domus |
|---|---|
| Range | Low Spin Washers |
| Equipment type | washer |
| Rated capacity | 47 kg at 1:9 / 42 kg at 1:10 |
| Condition | new |
| Weight | 600.0 kg |
Controls & configuration
| Control | TOUCH II 7-inch touchscreen |
|---|---|
| Programmes | Fully programmable TOUCH II control; confirm the required programme set |
| Payment compatibility | Self-service version listed YES for DLS-45C; confirm supplied payment equipment |
Site & services
| Electrical supply | 230V 3+E or 400V 3+N+E; confirm the ordered heating and circuit arrangement |
|---|---|
| Power | Electric version: max. 22 kW; hot-water/steam versions: 6 kW electrical |
| Water connection | 3/4in water inlet |
| Drain | 3in drain valve / 200 l/min |
| Dimensions (W × D × H) | 979 x 1325 x 1411 mm |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
