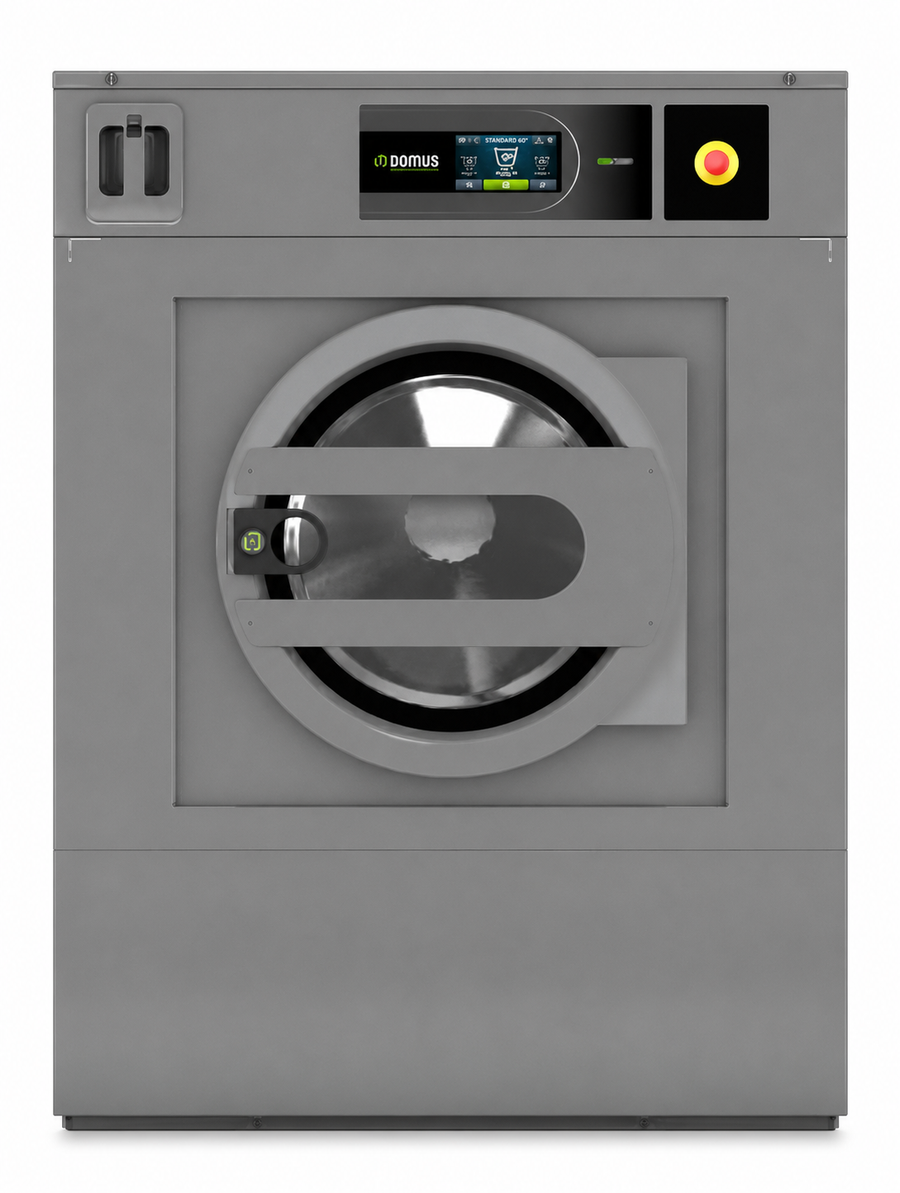

Domus DLS-80C 85kg Commercial Washer

The Domus DLS-80C TOUCH II is a hard-mounted commercial low-spin washer. Its dry-load rating is 85 kg at a 1:9 fill ratio or 77 kg at 1:10. The exact table gives an 800-litre drum, an 85 kg rating at 1:9 and 77 kg at 1:10. The cabinet is 1492 mm deep. Maximum electric power differs by supply version, so a single unqualified power figure would be misleading.

Controls and construction

The programmable TOUCH II control uses a 7-inch touchscreen, a USB port and eight standard dosing signals, with six additional signals optional. The drum and vat are AISI 304 stainless steel; skinplate cabinet panels are standard. Load-weight indication is manual and does not establish an automatic weighing system.

Configuration and options

The exact model table lists a self-service version; the payment equipment and supplied operating mode need confirmation. A self-service version is listed YES, double drainage is optional, and weighing and tilting are listed NO. The stated hot-water/steam electrical maximum is 7.5 kW; confirm the supplied arrangement alongside the external heat source. Maximum electric-version power is 50.5 kW at 400V / 38.5 kW at 230V. Hot-water/steam configurations list 7.5 kW electrical demand in addition to their external heat source.

Plan the installation

A hard-mounted washer requires suitable floor anchoring. Share the peak dry-load weight, textile mix, operating window, floor information and available services with ILS. The 1in water inlet, 3in drain valve and quoted 200 l/min drain capacity must be assessed against the final configuration and site drainage. Equipment price, delivery and installation are confirmed by quotation.

Review the exact manufacturer specification · Compare suitable washers · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
