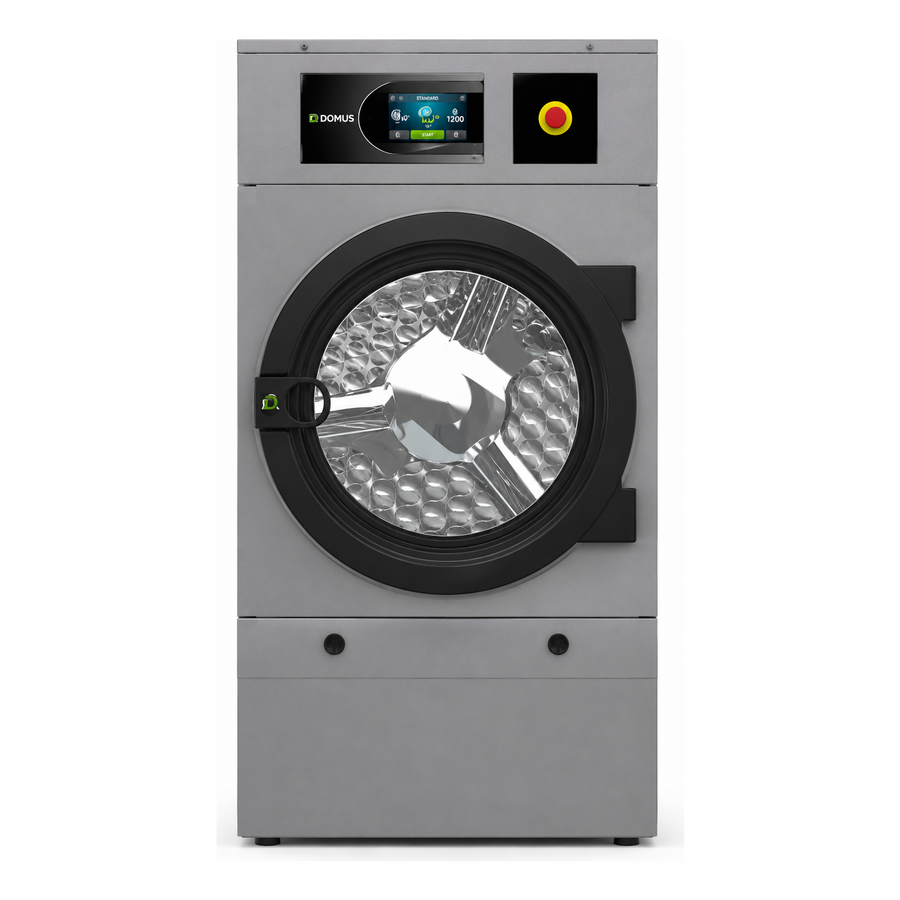

Domus DTT-11 11.7kg Commercial Dryer

The Domus DTT-11 is a DYNAMIC single-drum commercial dryer. The exact sheet rates its 210-litre drum at 11.7 kg for a 1:18 fill ratio or 10.5 kg for 1:20. These are dry-load ratings, not a guaranteed hourly output. The 210-litre drum is 750 mm in diameter and 475 mm long. The 400V electric version is listed with 25 A protection; its 230V single-phase electric option has a substantially different circuit requirement.

Controls and textile handling

Touch II uses a programmable 7-inch screen with USB, 37 languages and display-video capability. The source lists reversing drum action, a stainless steel drum and frequency inverter as standard, with mixed axial-radial DOUBLE FLOW airflow and a drawer lint filter. EFFICIENT DRY humidity sensing is an option on this standard DTT model. Confirm the control, sensor and connectivity arrangements included in your order.

Heating and site services

The electric table gives 12 kW heating and 12.67 kW installed electrical power. The gas version gives 20.5 kW gas heating with 0.67 kW electrical power; the standard steam heating table gives 30 kW. The electrical installation depends on the selected heating and supply version. The cited 400V 3N electric arrangement uses 25 A protection. The gas table specifies a 1/2in inlet. Nominal airflow is 850 m³/h through a 200 mm exhaust. Exhaust design and make-up air need a site check.

Access and workload

The net dimensions are 785 × 855 × 1694 mm (width × depth × height), with 172 kg net weight and a 574 mm loading opening. Allow for door opening, lint-filter withdrawal and service access. Tell ILS the textile mix, wash extraction, working window and available services so the drying stage can be assessed with the rest of the laundry.

Read the exact DTT-11 specification · Compare dryers · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
