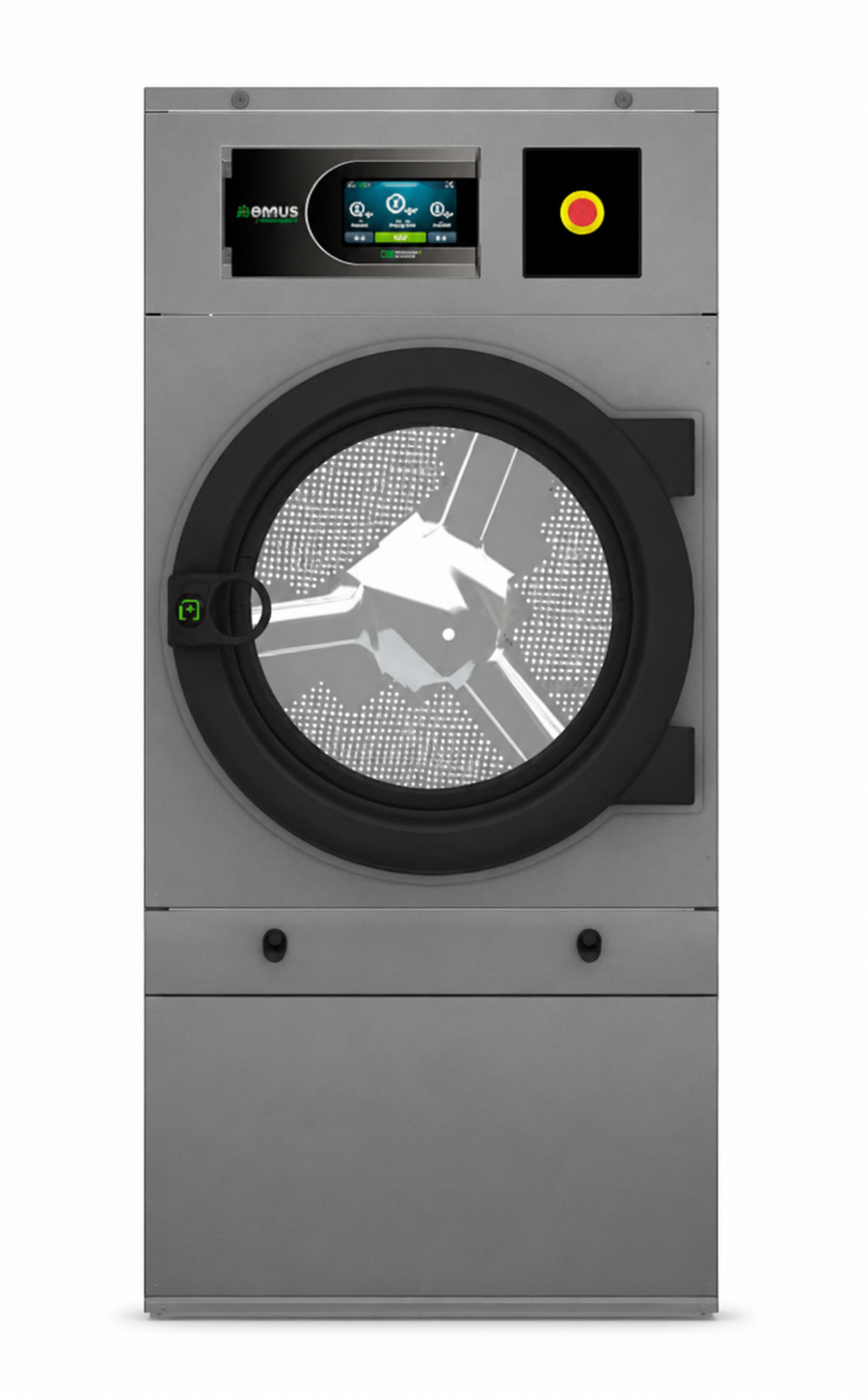

Domus DTT-14 15kg Commercial Dryer

The Domus DTT-14 is a DYNAMIC single-drum commercial dryer. The exact sheet rates its 270-litre drum at 15 kg for a 1:18 fill ratio or 13.5 kg for 1:20. These are dry-load ratings, not a guaranteed hourly output. The 270-litre drum is 610 mm long, 135 mm longer than DTT-11. An optional reduced 12 kW electric-heating arrangement is listed; it must be selected rather than assumed from the standard 18 kW table.

Controls and textile handling

Touch II uses a programmable 7-inch screen with USB, 37 languages and display-video capability. The source lists reversing drum action, a stainless steel drum and frequency inverter as standard, with mixed axial-radial DOUBLE FLOW airflow and a drawer lint filter. EFFICIENT DRY humidity sensing is an option on this standard DTT model. Confirm the control, sensor and connectivity arrangements included in your order.

Heating and site services

The electric table gives 18 kW heating and 18.67 kW installed electrical power. The gas version gives 20.5 kW gas heating with 0.67 kW electrical power; the standard steam heating table gives 30 kW. The electrical installation depends on the selected heating and supply version. The cited 400V 3N electric arrangement uses 32 A protection. The gas table specifies a 1/2in inlet. Nominal airflow is 850 m³/h through a 200 mm exhaust. Exhaust design and make-up air need a site check.

Access and workload

The net dimensions are 785 × 989 × 1694 mm (width × depth × height), with 180 kg net weight and a 574 mm loading opening. Allow for door opening, lint-filter withdrawal and service access. Tell ILS the textile mix, wash extraction, working window and available services so the drying stage can be assessed with the rest of the laundry.

Read the exact DTT-14 specification · Compare dryers · Discuss this model with ILS
