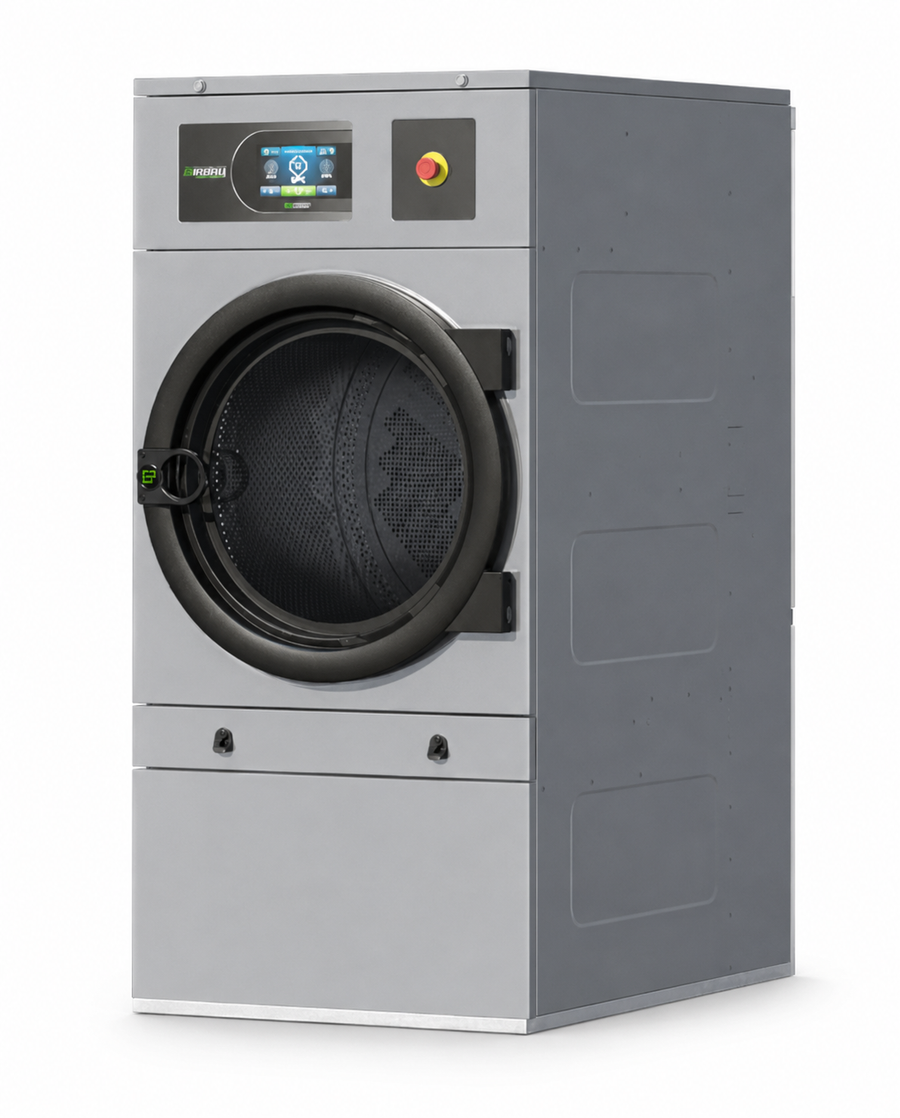

Domus DTT-14 HPi ECO-ENERGY 15kg Commercial Dryer

The Domus DTT-14 HPi ECO-ENERGY is a single-drum heat-pump commercial dryer. Its 270-litre drum is rated at 15 kg for 1:18 or 13.5 kg for 1:20. The 270-litre drum is 610 mm long. The net-depth table gives 1040 mm while the drawing’s E dimension is 989 mm. This source conflict needs the complete supplied installation drawing; the lower figure must not be assumed to be overall depth. Dry-load capacity is a planning input; textile type, extraction, residual moisture and the required working window still determine the drying requirement.

Controls and textile handling

Touch II uses a programmable 7-inch colour touchscreen, USB and 37 languages. The exact sheet lists a stainless steel drum, reversing action, frequency inverter, EFFICIENT DRY humidity sensing, double door glass and mixed axial-radial airflow. The drawer lint filter has a wide surface; allow room to withdraw and clean it. Confirm the supplied programme setup, connectivity licence, payment arrangement and optional casing or door configuration with ILS.

Heat pump and condensate services

The source states that an exterior exhaust is not required for this heat-pump model. It specifies a moisture-extraction drain hose with 12 mm diameter and 2000 mm length, with longer distances referred to the installation manual. This does not remove the need to assess the room, condensate route and service access. Total electric power is 2.74 kW; the separate table entry labelled heating power is 2.2 kW. Voltage, phase and protective devices must match the exact supplied version.

Plan the exact installation

The technical table gives 785 × 1040 × 1694 mm (width × depth × height) and 300 kg net weight, with a 574 mm loading opening. The table/drawing depth discrepancy above must be resolved for the quotation and access plan. Bring the room dimensions, access route, drainage arrangement, peak dry textile weight and readiness time to ILS. Compare this exact HPi source with any conventional heated alternative rather than assuming the two configurations have identical services or throughput.

Read the exact DTT-14 HPi ECO-ENERGY specification · Compare drying configurations · Discuss this heat-pump model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
