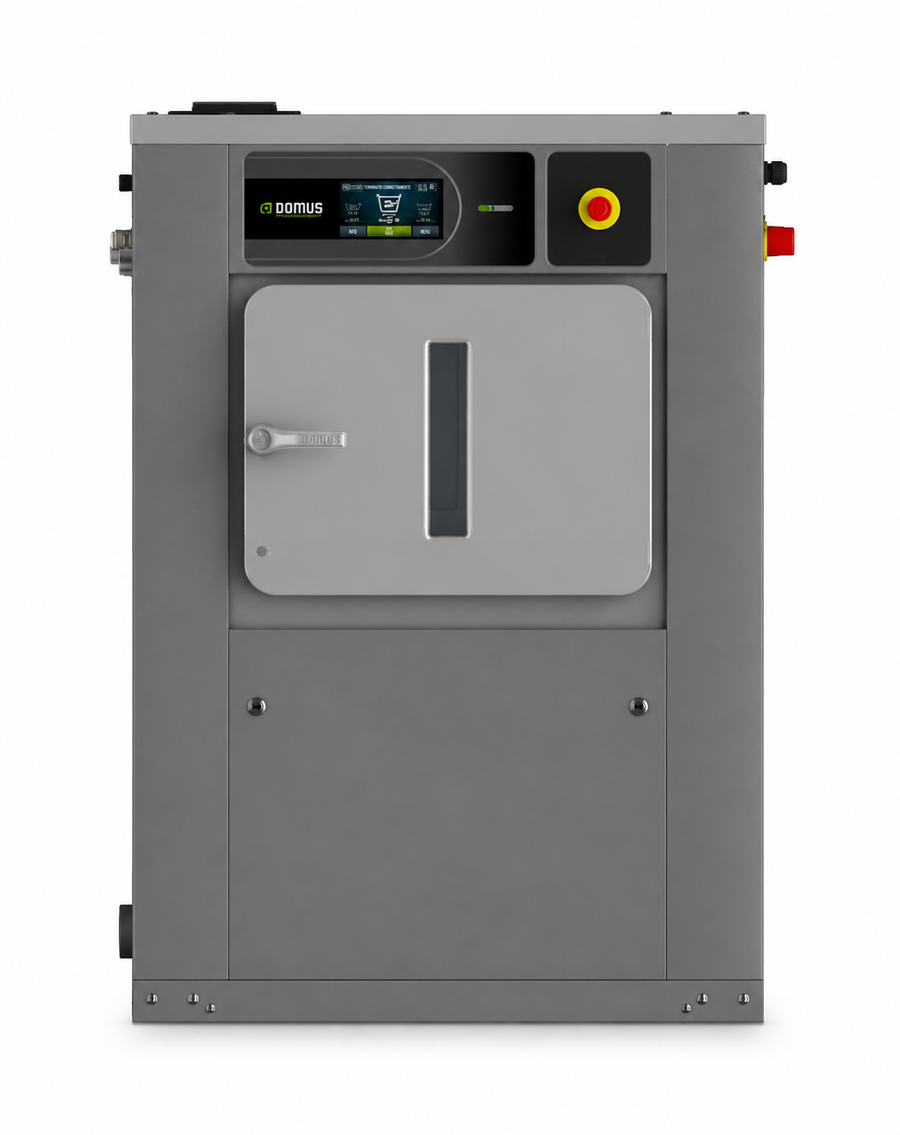

Manufacturer photograph. The supplied configuration is confirmed in your quotation.

Domus · ASM barrier washer

Domus ASM-22 24.5kg Barrier Washer

The Domus ASM-22 TOUCH II is a pass-through barrier washer with a 220-litre drum.

Rated capacity: 24.5 kg at 1:9 / 22 kg at 1:10
Control: TOUCH II 7-inch touchscreen; second clean-side screen optional
W × D × H: Confirm final configuration drawing: the linked table and drawing differ in width and height
Weight: 471 kg

Quoted for your sitePrice on application

Your quotation confirms the specification, delivery and any installation for your site.

Ask a specialist about this machine

Datasheet PDF ↗

Delivery is quoted for your site, with installation available as an option.
Utilities, access and options are confirmed with you before ordering.
Questions? Call 07411 229429, Mon–Fri, 9am–5pm.

Overview

The Domus ASM-22 TOUCH II is a pass-through barrier washer with a 220-litre drum. Rated dry-load capacities are 24.5 kg at a 1:9 fill ratio and 22 kg at 1:10. Opposed loading and unloading doors support a separated laundry workflow. Its single-compartment drum differs from the divided-drum arrangement of larger listed barrier models.

What this specification establishes

The technical table marks the second screen, motor brake and double drainage as options. Two water inlets are standard; a third is optional. The drum and vat are AISI 304 stainless steel, with a grey skinplate cabinet and stainless steel top. The specified G-factor is 350.

Options and installation

The net width and height differ between the table and drawing in this source. Confirm the final configuration drawing before planning clearances. Manual load-weight entry is separate from the optional weighing system. The electric version totals 20.2 kW electrical power; the steam version uses 2.2 kW electrical power in addition to its heat source.

Prepare a useful enquiry

Bring the textile mix, operating window and soiled/clean handling routes to the enquiry. The machine specification must form part of the facility’s own process plan; equipment alone does not establish validated hygiene or cleanroom compliance.

Review the manufacturer specification · Build your equipment project · Discuss this model with ILS

Specification

Manufacturer datasheet (PDF)

Model & workload

Model details for Domus ASM-22 24.5kg Barrier Washer
Brand	Domus
Range	Barrier washers ASM
Equipment type	washer
Rated capacity	24.5 kg at 1:9 / 22 kg at 1:10
Condition	new
Weight	471.0 kg

Controls & configuration

Controls for Domus ASM-22 24.5kg Barrier Washer
Control	TOUCH II 7-inch touchscreen; second clean-side screen optional
Payment compatibility	No self-service payment configuration established in the linked ASM-22 datasheet

Site & services

Site requirements for Domus ASM-22 24.5kg Barrier Washer
Electrical supply	230V 1+N+T (steam model) \| 230V 3+T \| 400V 3+N+T
Power	Electric version: 20.2 kW total electrical; steam version: 2.2 kW electrical
Water connection	3/4in water inlet (2 inlets; 3rd optional)
Drain	1x 3in drain / 200 l/min (2nd drain valve optional)
Dimensions (W × D × H)	Confirm final configuration drawing: the linked table and drawing differ in width and height

Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.

Documents

Manufacturer files. They open in a new tab.

Delivery & installation

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
