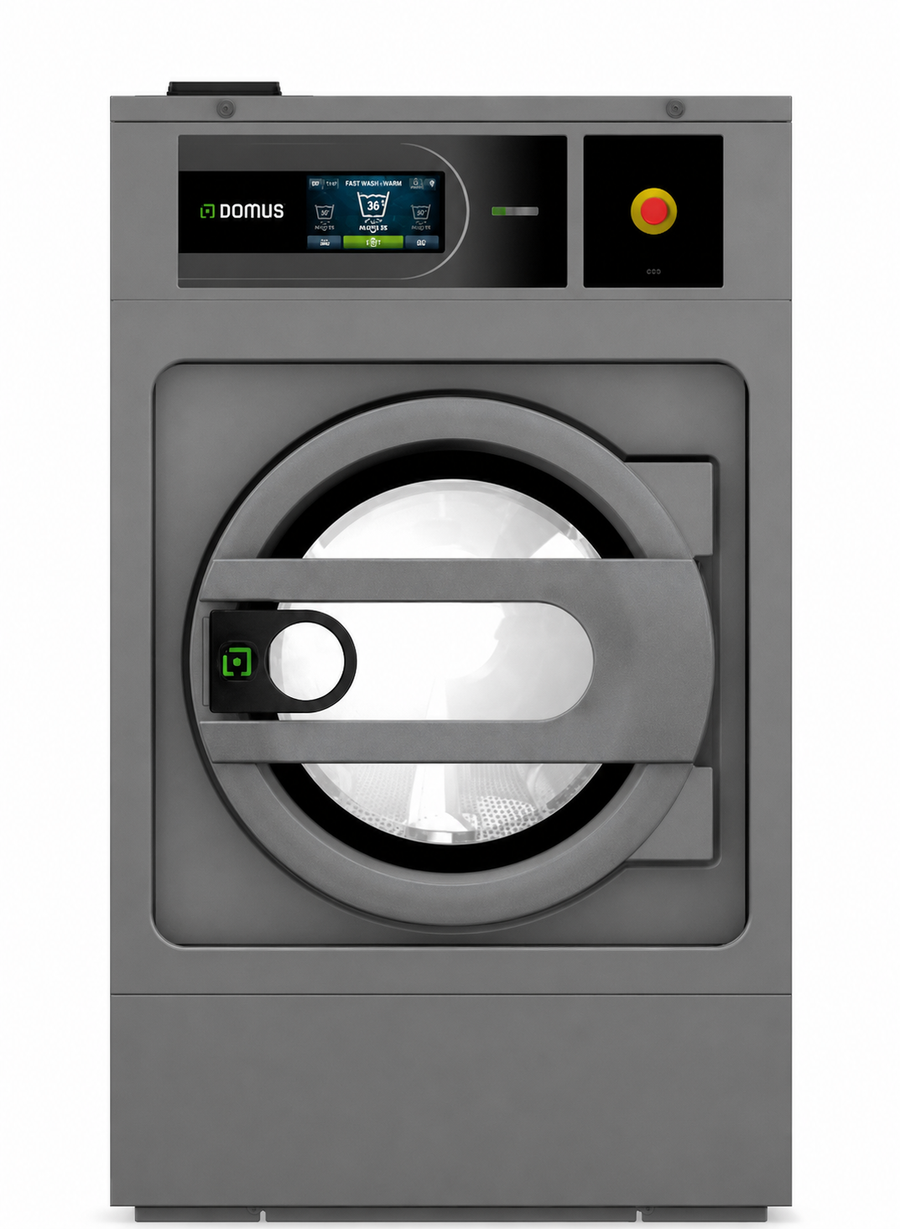

Manufacturer photograph. The supplied configuration is confirmed in your quotation.
Domus · Low-spin washer
Domus DLS-18 20kg Commercial Washer
The Domus DLS-18 TOUCH II is a hard-mounted commercial low-spin washer.
- Rated capacity
- 20 kg at 1:9 / 18 kg at 1:10
- Control
- TOUCH II 7-inch touchscreen
- W × D × H
- 788 x 935 x 1307 mm
- Weight
- 272 kg
Your quotation confirms the specification, delivery and any installation for your site.
Ask a specialist about this machine- Delivery is quoted for your site, with installation available as an option.
- Utilities, access and options are confirmed with you before ordering.
- Questions? Call 07411 229429, Mon–Fri, 9am–5pm.
Overview
The Domus DLS-18 TOUCH II is a hard-mounted commercial low-spin washer. Its dry-load rating is 20 kg at a 1:9 fill ratio or 18 kg at 1:10. The exact table rates the 180-litre drum at 20 kg at 1:9 and 18 kg at 1:10. The door opening is 460 mm and the listed spin speed is 714 rpm.
Controls and construction
The programmable TOUCH II control uses a 7-inch touchscreen, a USB port and eight standard dosing signals, with six additional signals optional. The drum and vat are AISI 304 stainless steel; skinplate cabinet panels are standard. Load-weight indication is manual and does not establish an automatic weighing system.
Configuration and options
The exact model table lists a self-service version; the payment equipment and supplied operating mode need confirmation. Double drainage and the sluice drum are options, with no weighing or tilting system listed in the exact table. Confirm the selected heating conversion, dosing equipment and cabinet finish separately. Maximum electric-version power is 12.75 kW. Hot-water/steam configurations list 2.2 kW electrical demand in addition to their external heat source.
Plan the installation
A hard-mounted washer requires suitable floor anchoring. Share the peak dry-load weight, textile mix, operating window, floor information and available services with ILS. The 3/4in water inlet, 3in drain valve and quoted 200 l/min drain capacity must be assessed against the final configuration and site drainage. Equipment price, delivery and installation are confirmed by quotation.
Review the exact manufacturer specification · Compare suitable washers · Discuss this model with ILS
Specification
Manufacturer datasheet (PDF)Model & workload
| Brand | Domus |
|---|---|
| Range | Low Spin Washers |
| Equipment type | washer |
| Rated capacity | 20 kg at 1:9 / 18 kg at 1:10 |
| Condition | new |
| Weight | 272.0 kg |
Controls & configuration
| Control | TOUCH II 7-inch touchscreen |
|---|---|
| Programmes | Fully programmable TOUCH II control; confirm the required programme set |
| Payment compatibility | Self-service version listed YES for DLS-18; confirm supplied payment equipment |
Site & services
| Electrical supply | Electric: 230V 1+N+E, 230V 3+E or 400V 3+N+E; hot-water/steam: 230V 1+N+E |
|---|---|
| Power | Electric version: max. 12.75 kW; hot-water/steam versions: 2.2 kW electrical |
| Water connection | 3/4in water inlet |
| Drain | 3in drain valve / 200 l/min |
| Dimensions (W × D × H) | 788 x 935 x 1307 mm |
Specification and options vary by configuration. Utilities, access and installation requirements are confirmed with ILS before ordering. Paired capacities follow the manufacturer's ratings at different fill ratios; see the datasheet.
Documents
Manufacturer files. They open in a new tab.
Delivery & installation
Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.
Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.
Installation is available as an option. We discuss utilities, connections and commissioning with you.
Scottish island deliveries carry a surcharge, confirmed on your quotation.
