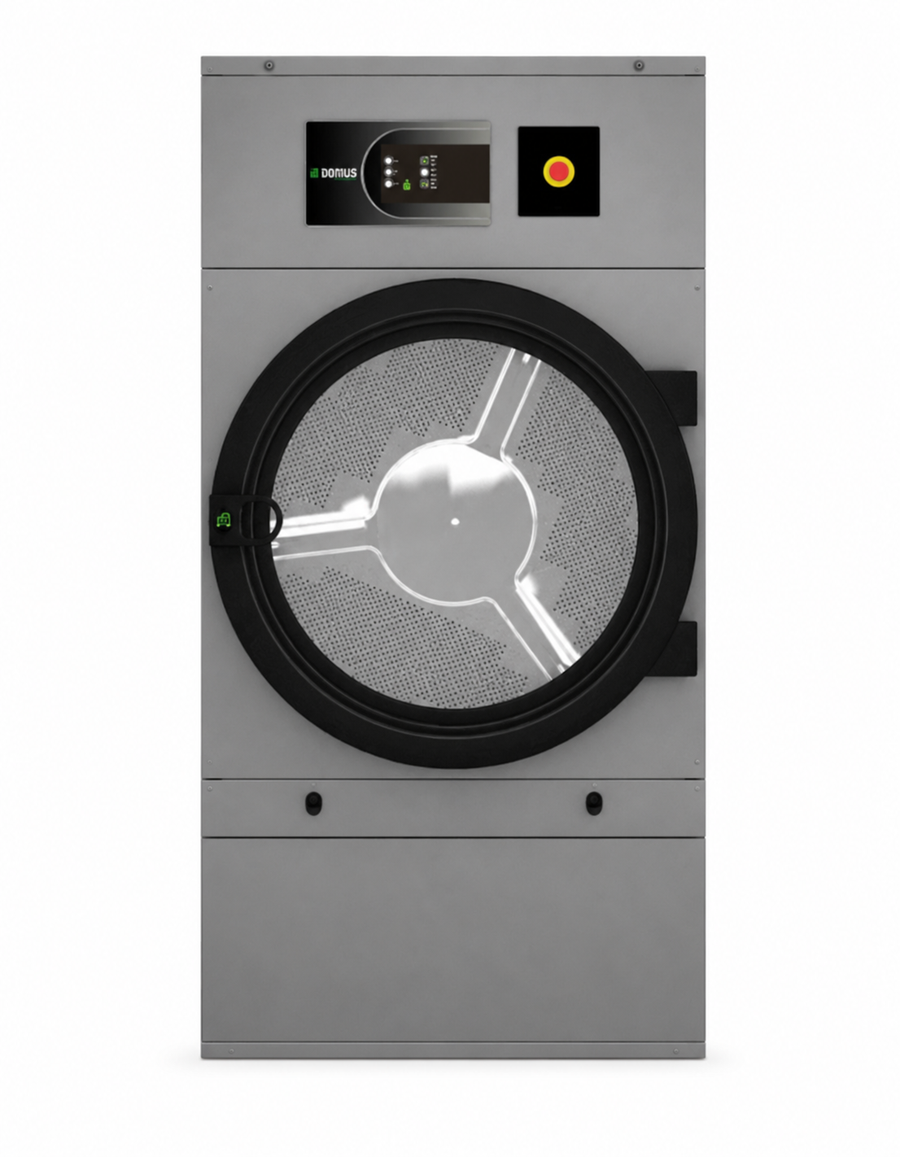

Domus DTM-28 30.6kg Commercial Dryer

The Domus DTM-28 is a COMFORT single-drum commercial dryer with M electronic push-button control. Its 550-litre drum is rated at 30.6 kg for a 1:18 fill ratio or 27.5 kg for 1:20. These are dry-load capacities, rather than guaranteed hourly throughput. The 947 mm-diameter drum is 780 mm long. A reinforced heavy-duty drum is optional for this range. The loading opening starts 578 mm above the floor.

M electronic control

The M programmer controls temperature and time with push buttons. Reversing drum action, a stainless steel drum and a frequency inverter are standard in the exact sheet. DOUBLE FLOW combines axial and radial airflow; the drawer lint filter uses stainless steel mesh. A display for the M programmer and an external service console are listed options where applicable. Confirm the supplied control and maintenance arrangements with ILS.

Heating and ventilation

Electric heating is 30 kW with 31.15 kW installed electrical power. The gas arrangement gives 41 kW heating and 1.15 kW electrical power; standard steam heating is 50.1 kW. The cited 400V 3N electric circuit uses 63 A protection. The gas inlet is listed as 1/2in. Nominal airflow is 1200 m³/h through a 200 mm exhaust. Assess exhaust routing, make-up air and the actual heating and electrical version with the site.

Access and workload

Net dimensions are 985 × 1054 × 1975 mm (width × depth × height), with 230 kg net weight and a 802 mm loading opening. Allow for door travel, filter withdrawal and servicing. Bring textile mix, wash extraction, dry-load demand, working hours and access details to ILS so drying can be considered alongside washing, finishing and handling. Shared family photos do not establish exact depth or ordered options.

Read the exact DTM-28 specification · Compare dryers · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
