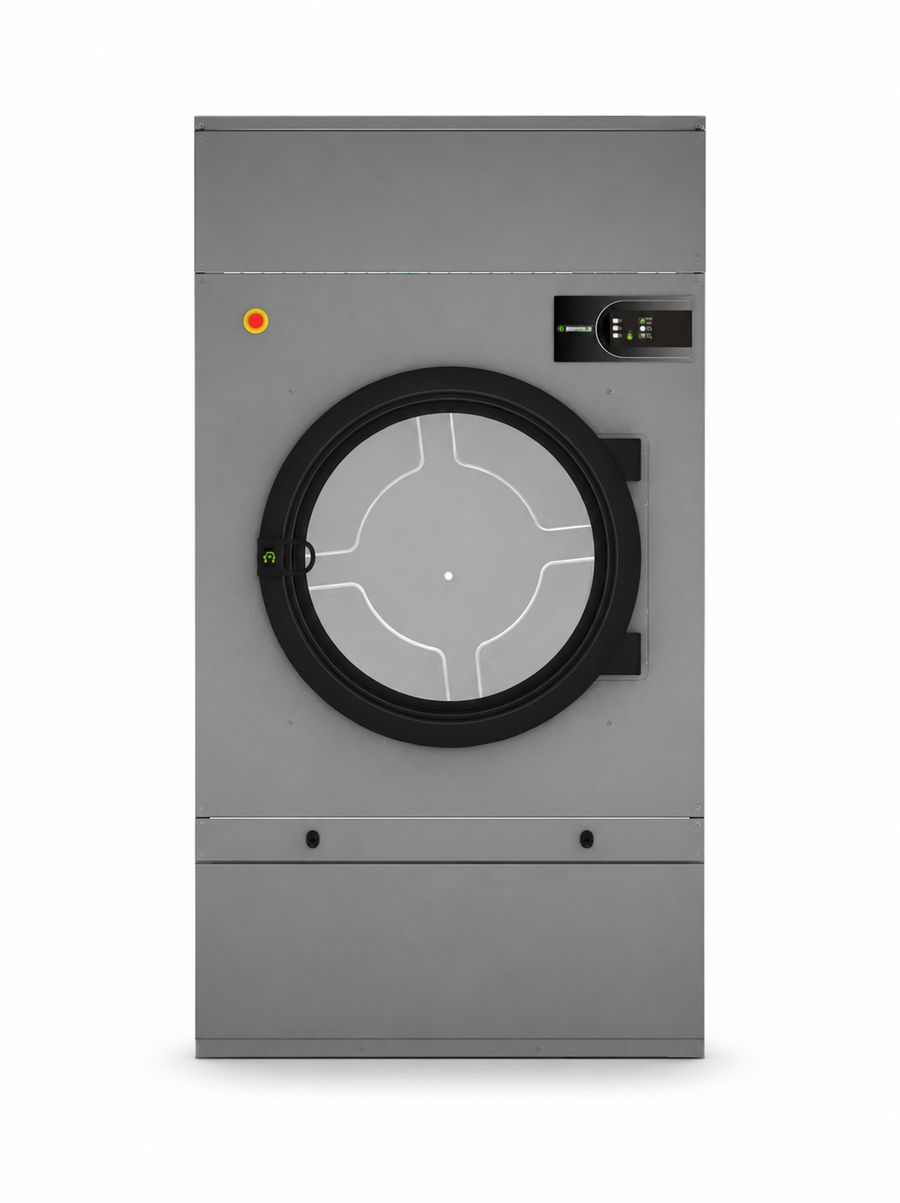

Domus DTM-80 83.3kg Commercial Dryer

The Domus DTM-80 is a COMFORT single-drum commercial dryer with M electronic push-button control. Its 1500-litre drum is rated at 83.3 kg for a 1:18 fill ratio or 75 kg for 1:20. These are dry-load capacities, rather than guaranteed hourly throughput. The 1500-litre drum is 1252 mm long, with 1598 mm cabinet depth. Gas heating is 120 kW, distinct from 72 kW electric heating and the electrical power of the gas version.

M electronic control

The M programmer controls temperature and time with push buttons. Reversing drum action, a stainless steel drum and a frequency inverter are standard in the exact sheet. DOUBLE FLOW combines axial and radial airflow; the drawer lint filter uses stainless steel mesh. An external service console is optional. Confirm the supplied control and maintenance arrangements with ILS.

Heating and ventilation

Electric heating is 72 kW with 74.65 kW installed electrical power. The gas arrangement gives 120 kW heating and 2.65 kW electrical power; standard steam heating is 128 kW. The cited 400V 3N electric circuit uses 125 A protection. The gas table states a 3/4in inlet while the drawing legend says 1/2in, so the final gas connection needs confirmation. Nominal airflow is 3000 m³/h through a 300 mm exhaust. Assess exhaust routing, make-up air and the actual heating and electrical version with the site.

Access and workload

Net dimensions are 1270 × 1598 × 2380 mm (width × depth × height), with 657 kg net weight and a 802 mm loading opening. The separate 2200 mm packing-height figure excludes heating equipment and is not the 2380 mm installed cabinet height. Allow for door travel, filter withdrawal and servicing. Bring textile mix, wash extraction, dry-load demand, working hours and access details to ILS so drying can be considered alongside washing, finishing and handling. Shared family photos do not establish exact depth or ordered options.

Read the exact DTM-80 specification · Compare dryers · Discuss this model with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
