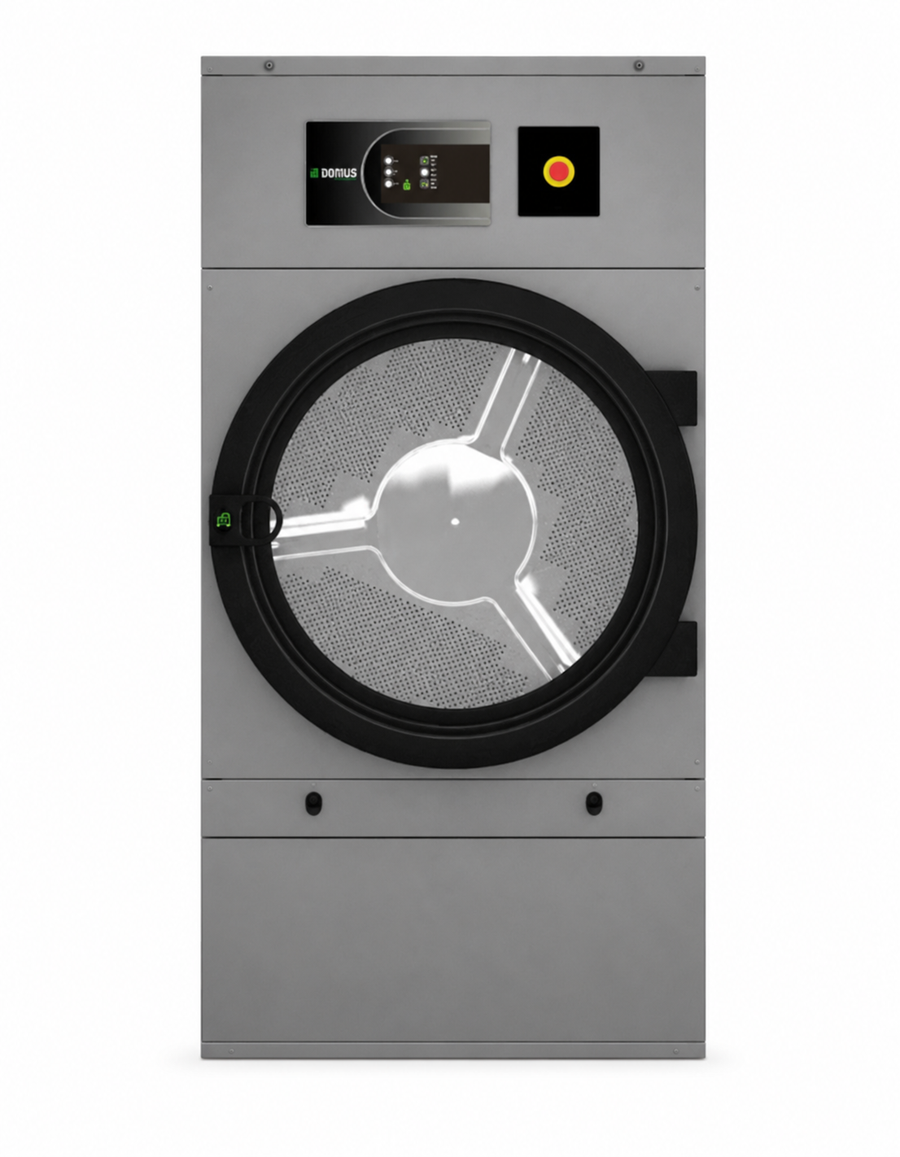

Domus DTM-35 36.7kg Commercial Dryer

The Domus DTM-35 is a COMFORT single-drum commercial dryer with M electronic push-button control. Its 660-litre drum is rated at 36.7 kg for a 1:18 fill ratio or 33 kg for 1:20. These are dry-load capacities, rather than guaranteed hourly throughput. The 660-litre drum is 936 mm long, within a cabinet 156 mm deeper than DTM-28. A reinforced drum and double door glass are options to specify for the actual order.

M electronic control

The M programmer controls temperature and time with push buttons. Reversing drum action, a stainless steel drum and a frequency inverter are standard in the exact sheet. DOUBLE FLOW combines axial and radial airflow; the drawer lint filter uses stainless steel mesh. A display for the M programmer and an external service console are listed options where applicable. Confirm the supplied control and maintenance arrangements with ILS.

Heating and ventilation

Electric heating is 36 kW with 37.15 kW installed electrical power. The gas arrangement gives 41 kW heating and 1.15 kW electrical power; standard steam heating is 50.1 kW. The cited 400V 3N electric circuit uses 63 A protection. The gas inlet is listed as 1/2in. Nominal airflow is 1200 m³/h through a 200 mm exhaust. Assess exhaust routing, make-up air and the actual heating and electrical version with the site.

Access and workload

Net dimensions are 985 × 1210 × 1975 mm (width × depth × height), with 260 kg net weight and a 802 mm loading opening. Allow for door travel, filter withdrawal and servicing. Bring textile mix, wash extraction, dry-load demand, working hours and access details to ILS so drying can be considered alongside washing, finishing and handling. Shared family photos do not establish exact depth or ordered options.

Read the exact DTM-35 specification · Compare dryers · Discuss this model with ILS
