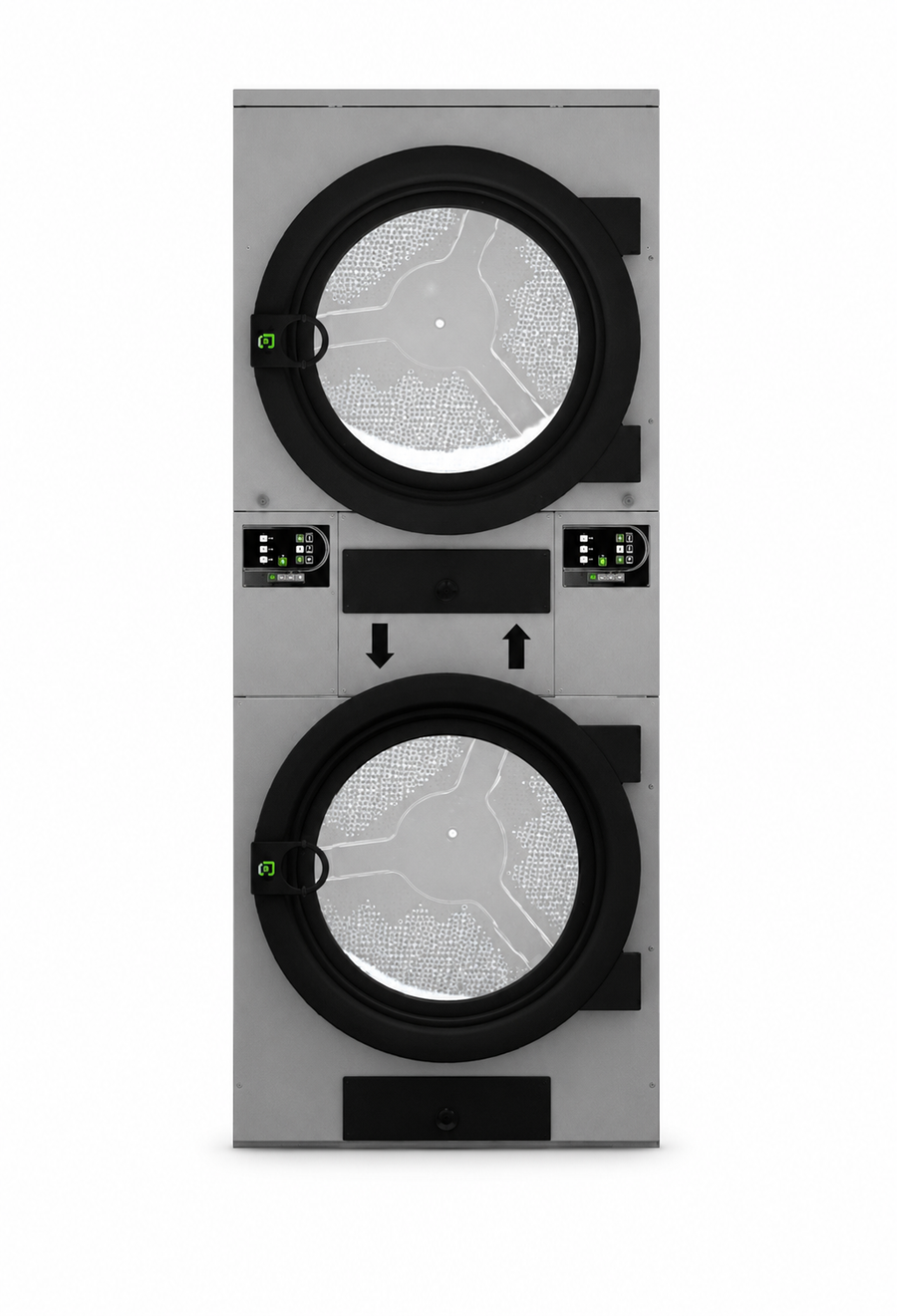

Domus DTM2-14 XP 15.0kg Commercial Dryer

The Domus DTM2-14 XP is a two-pocket COMFORT stack dryer with M electronic push-button control. Capacity is 15 kg per pocket at 1:18 or 13.5 kg per pocket at 1:20, rather than a single combined column rating. Each 270-litre drum is 610 mm long. A reduced 12 kW heating option is listed separately from the standard 18 kW per pocket. Plan the loading, unloading and drying needs of each pocket.

M control and ordered options

The M programmer controls temperature and time. The exact sheet lists reversing drum action, stainless steel drums and frequency inverters as standard. DOUBLE FLOW combines axial and radial airflow, with drawer lint filters and stainless mesh. Two M-programmer screens, double door glass ordered per column, CP KIT CENTRAL PAY STACK and the external service console are options. Standard stack filter mesh is 0.6 mm; 0.3 mm is optional. Confirm the exact control and payment equipment supplied.

Heating and ventilation

Electric heating is 18 kW per pocket, with 37.34 kW installed electrical power for the column. The cited 400V 3N electric configuration uses 63 A protection. Gas heating is 20.5 kW per pocket, with 1.34 kW installed electrical power for the column and a 3/4in gas inlet. Nominal airflow is 500 m³/h per pocket through a 200 mm exhaust. The electrical circuit depends on the actual supply and heating version; confirm exhaust routing, make-up air, utilities and final connection details with the site.

Plan both loading positions

Net dimensions are 785 × 1135 × 1994 mm (width × depth × height), with 299 kg net weight and 574 mm loading openings. Lower and upper loading openings begin 189/1164 mm above the floor. The net-height table states 1994 mm while drawing A states 1980 mm; resolve the installed height before confirming access. Published hourly figures use full 1:20 towel loads at 90°C and cannot establish universal site throughput. Bring the two loading positions, dry loads, readiness times and maintenance clearances into the brief for ILS. Shared family photos do not prove the exact model depth or supplied options.

Read the exact DTM2-14 XP specification · Compare stack dryers · Discuss the drying layout with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
