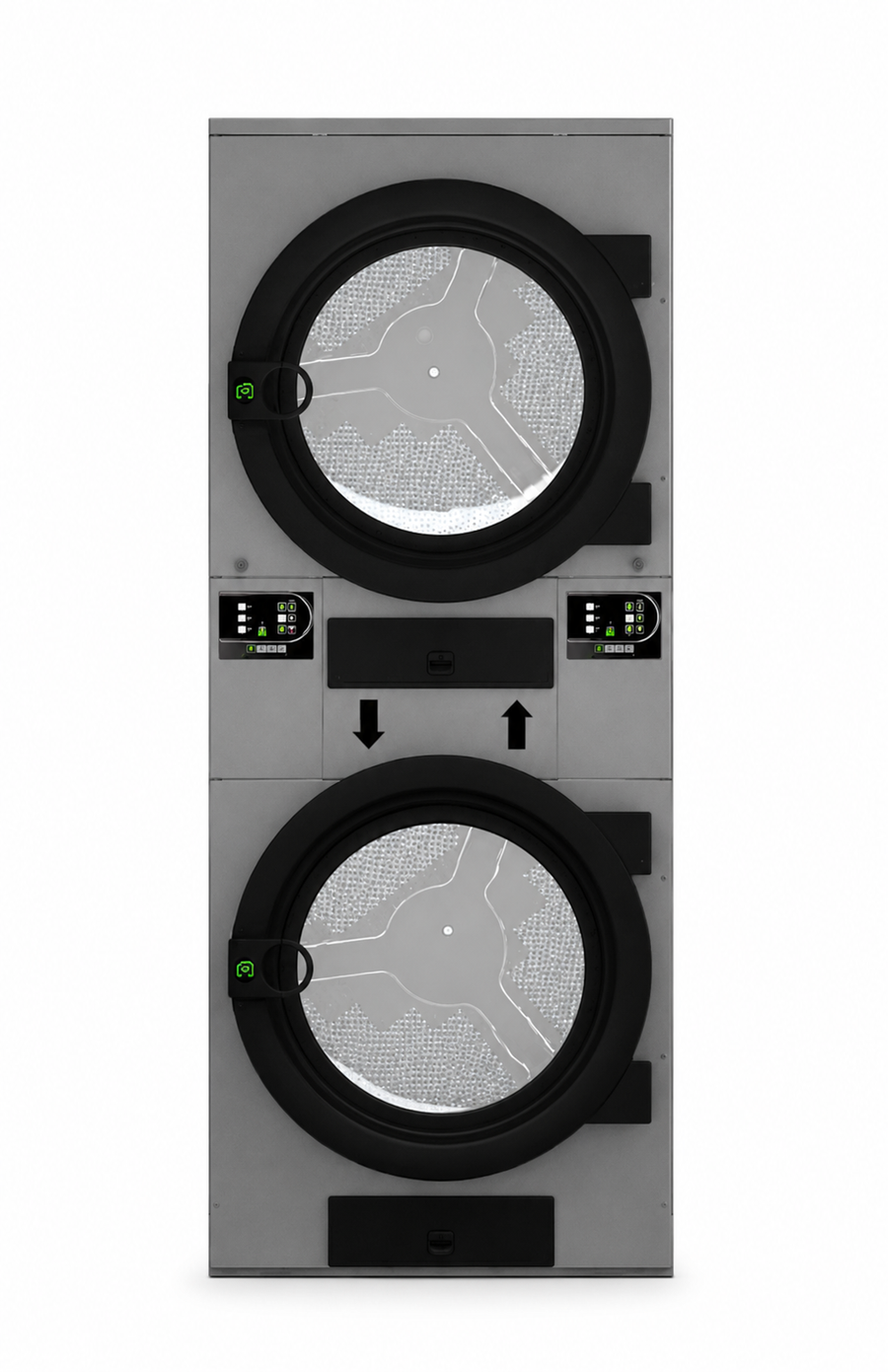

Domus DTM2-22 XP 24.3kg Commercial Dryer

The Domus DTM2-22 XP is a two-pocket COMFORT stack dryer with M electronic push-button control. Capacity is 24.3 kg per pocket at 1:18 or 21.9 kg per pocket at 1:20, rather than a single combined column rating. The exact model is gas-only: electric heating is blank in the source. Each 440-litre drum is 835 mm in diameter and 800 mm long. Its net weight is 373.5 kg in this exact COMFORT source. Plan the loading, unloading and drying needs of each pocket.

M control and ordered options

The M programmer controls temperature and time. The exact sheet lists reversing drum action, stainless steel drums and frequency inverters as standard. DOUBLE FLOW combines axial and radial airflow, with drawer lint filters and stainless mesh. Two M-programmer screens, double door glass ordered per column, CP KIT CENTRAL PAY STACK and the external service console are options. Standard stack filter mesh is 0.6 mm; 0.3 mm is optional. Confirm the exact control and payment equipment supplied.

Heating and ventilation

This exact model has gas heating only. Gas heating is 30.4 kW per pocket, with 1.94 kW installed electrical power for the column and a 3/4in gas inlet. Nominal airflow is 900 m³/h per pocket through a 250 mm exhaust. The electrical circuit depends on the actual supply and heating version; confirm exhaust routing, make-up air, utilities and final connection details with the site.

Plan both loading positions

Net dimensions are 870 × 1312 × 2118 mm (width × depth × height), with 373.5 kg net weight and 575 mm loading openings. Lower and upper loading openings begin 214/1258 mm above the floor. Published hourly figures use full 1:20 towel loads at 90°C and cannot establish universal site throughput. Bring the two loading positions, dry loads, readiness times and maintenance clearances into the brief for ILS. Shared family photos do not prove the exact model depth or supplied options.

Read the exact DTM2-22 XP specification · Compare stack dryers · Discuss the drying layout with ILS

Delivery is priced for your site. Machine delivery is quoted individually and included in your agreed quotation. There is no standard machine-delivery charge.

Pallet delivery is arranged for an agreed date. Tell us about access restrictions, unloading facilities and where the laundry is.

Installation is available as an option. We discuss utilities, connections and commissioning with you.

Scottish island deliveries carry a surcharge, confirmed on your quotation.

Delivery and installation in detail
